N383L-03M
ActiveEaton Tripp Lite
40/100/400G SINGLEMODE 9/125 OS2
N383L-03M
ActiveEaton Tripp Lite
40/100/400G SINGLEMODE 9/125 OS2
Description
General part information
N383L-03M

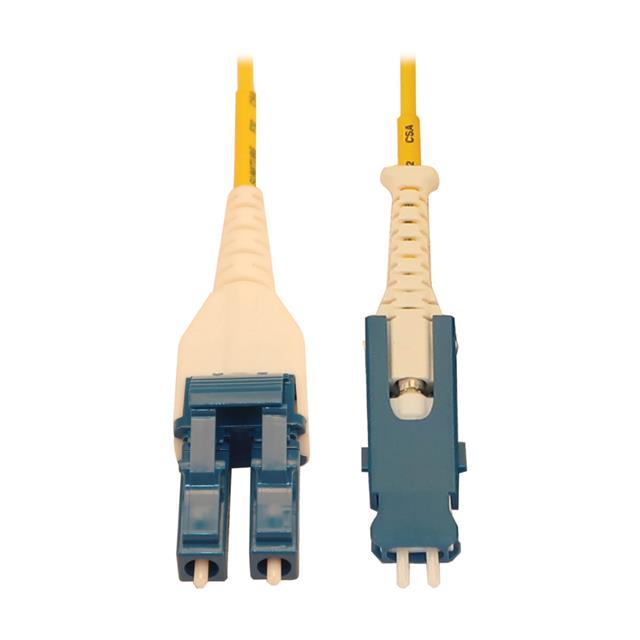

Cable Fiber Optic LC/UPC Duplex To SN/UPC Duplex 9/125 9.8' (3.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | N383L-03M |
|---|---|
| 1st Connector | LC/UPC Duplex |
| 2nd Connector | SN/UPC Duplex |
| Bend Radius | 10 mm |
| Cable Diameter | 0.06 " |
| Color - Cable | Yellow |
| Color - Connectors | Blue, White |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 9 µm |
| Insertion Loss | 0.3 dB |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Length - Overall | 9.8 ft |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Type | OS2, Duplex, Singlemode |
