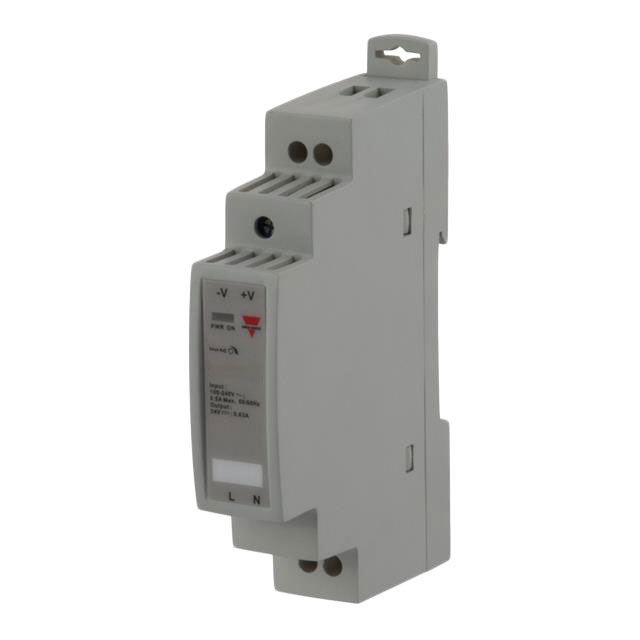

Specification	SPMA05151SCC

AC Voltage - Input (Max)	264 VAC
AC Voltage - Input (Min)	85 VAC
Applications	Industrial, ITE (Commercial)
Approval Agency	CE
Current - Output (Max)	2.4 A
DC Voltage - Input (Max)	350 V
DC Voltage - Input (Min)	120 V
Efficiency	77.5 %
Features	IP20, Adjustable Output, Universal Input
Input Type	AC or DC, DC, AC
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-30 °C
Power (Watts)	12 W
Size / Dimension Height	3.6 in
Size / Dimension Length	2.5 in
Size / Dimension Width	0.7 in
Standard Number	UL 508, 62368-1
Voltage - Isolation	4000 Vpk
Voltage - Output 1	5 V
