Description
General part information
- Series

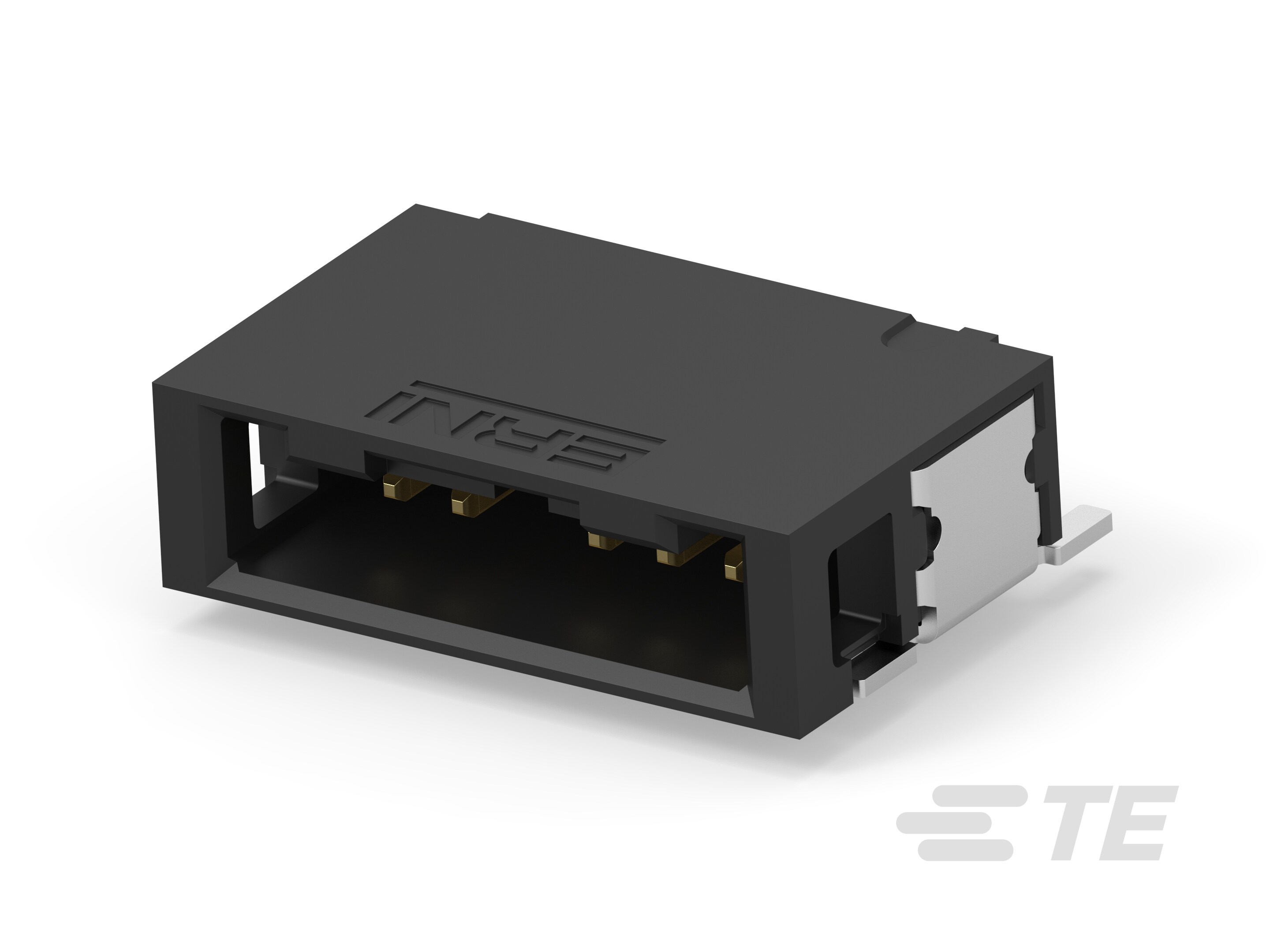

PCB Mount Header, Right Angle, Cable-to-Board, 6 Position, 1.27 mm [.05 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, ERNI MicroBridge
Technical Specifications
Parameters and characteristics for this part
| Specification | 514523-E |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 157.5 Ąin |
| Contact Length - Mating | 0.138 in |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | Board Guide, Solder Retention |
| Insulation Color | Black |
| Insulation Height | 0.138 in |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch - Mating | 0.05 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
