9892 0061000
ActiveBelden Inc.
MULTI-PAIR 8COND 20AWG BLU
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9892 0061000
ActiveBelden Inc.
MULTI-PAIR 8COND 20AWG BLU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9892 0061000 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Foam High Density Polyethylene (FHDPE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 28 |
| Conductor Strand [custom] | 7 |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.398 in |
| Jacket (Insulation) Diameter [diameter] | 10.11 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.889 mm |
| Jacket (Insulation) Thickness | 0.035 in |
| Jacket Color | Blue |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 8 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Ratings | UL Style 2919 |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 10.75 | |
Description
General part information
9892 Series

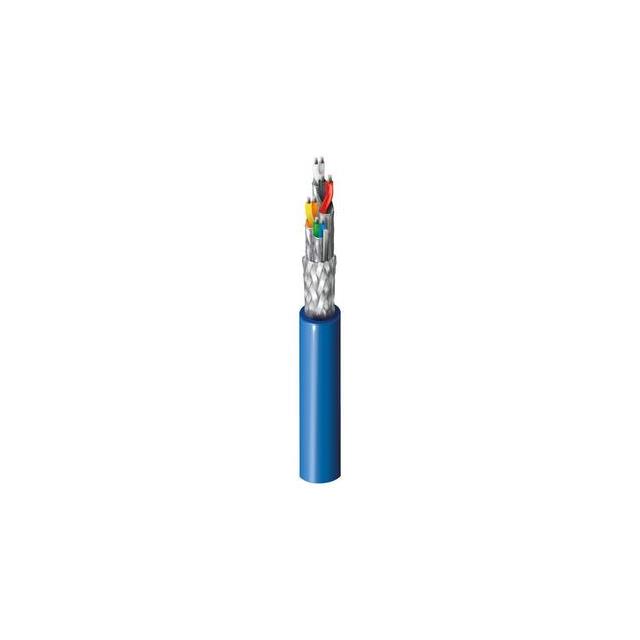

8 (4 Pair Twisted) Conductor Multi-Pair Cable Blue 20 AWG Foil 1000.0' (304.8m)
