LMR-400-FR

Active

Amphenol Times Microwave Systems

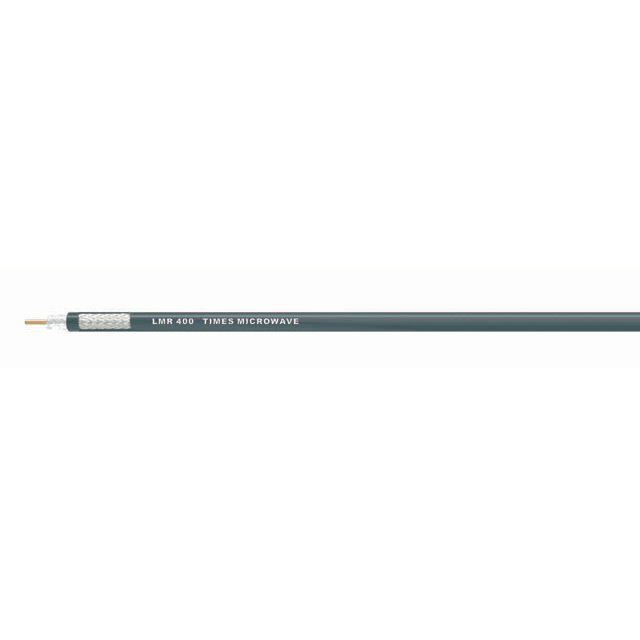

CABLE LMR-400 FRPE 10'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LMR-400-FR

Active

Amphenol Times Microwave Systems

CABLE LMR-400 FRPE 10'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 22.39
		3	$ 20.68
		5	$ 19.99
		7	$ 19.54
		10	$ 18.97

Description

General part information

LMR-400 Series

Coaxial - Riser Cable 10.0' (3.05m) 50 Ohms

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LMR-400-FR	LMR-400 Series

Cable Type	Coaxial - Riser	Coaxial, Coaxial - Plenum, Coaxial - Riser
Conductor Material	Aluminum, Copper Coated	Aluminum, Copper Coated, Copper, Bare
Conductor Strand	Solid	Solid
Dielectric Diameter [diameter]	7.24 mm	7.24 mm
Dielectric Diameter [diameter]	0.285 in	0.285 in
Dielectric Material	Foam Polyethylene (FPE)	Foam Polyethylene (FPE), Polytetrafluoroethylene (PTFE)
Features	Fire Retardant	Fire Retardant, Direct Burial, Watertight, Flame Retardant
Impedance	50 Ohms	50 - 75 Ohms
Jacket (Insulation) Diameter [diameter]	10.29 mm	9.4 - 10.29 mm
Jacket (Insulation) Diameter [diameter]	0.405 in	0.37 - 0.405 in
Jacket (Insulation) Material	Polyethylene (PE), Riser	Poly-Vinyl Chloride (PVC), Polyethylene (PE), Riser, Polyethylene (PE), Low Smoke Zero Halogen (LSZH), Thermoplastic Elastomer (TPE), Plenum, Poly-Vinyl Chloride (PVC), Riser, Fluoropolymer, Plenum
Jacket Color	Black	Black, Orange, Red
Length	-	Enter Number of Feet in Order Quantity
Length	-	15.24 - 152.4 m
Length	-	50 - 6000 "
Length [x]	3.05 m	3.05 - 30.48 m
Length [x]	10 ft	10 - 100 ft
Operating Temperature [Max]	85 °C	75 - 125 °C
Operating Temperature [Min]	-40 °C	-40 - -5 °C
Shield Material	Copper, Tinned, Aluminum	Copper, Tinned, Aluminum
Shield Type	Braid	Braid, Foil
Spool Size	-	500 '
Spool Size	-	152.4 m
VoP, Velocity of Propagation	84	76 - 85

LMR-400 Series

INDOOR CABLE, BLACK PVC JACKET

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shield Material	Jacket Color	Cable Type	Impedance	Dielectric Material	Shield Type	Conductor Material	VoP, Velocity of Propagation	Conductor Strand	Jacket (Insulation) Material	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Spool Size	Spool Size	Features	Length [x]	Length [x]	Length	Length
Amphenol Times Microwave Systems LMR-400-PVC	85 °C	-40 °C	Aluminum, Copper, Tinned	Black	Coaxial	50 Ohms	Foam Polyethylene (FPE)	Braid	Aluminum, Copper Coated	84	Solid	Poly-Vinyl Chloride (PVC)	7.24 mm	0.285 in	10.29 mm	0.405 in
Amphenol Times Microwave Systems LMR-400-UF-FR	85 °C	-40 °C	Aluminum, Copper, Tinned	Black	Coaxial	50 Ohms	Foam Polyethylene (FPE)	Braid	Copper, Bare	83		Polyethylene (PE), Riser	7.24 mm	0.285 in	10.29 mm	0.405 in	Enter Number of Feet in Order Quantity	500 '	152.4 m	Fire Retardant
Amphenol Times Microwave Systems LMR-400-LSZH	85 °C	-40 °C	Aluminum, Copper, Tinned	Black	Coaxial	50 Ohms	Foam Polyethylene (FPE)	Braid	Copper, Bare	85	Solid	Low Smoke Zero Halogen (LSZH), Polyethylene (PE)	7.24 mm	0.285 in	10.29 mm	0.405 in
Amphenol Times Microwave Systems LMR-400-75	85 °C	-40 °C	Aluminum, Copper, Tinned	Black	Coaxial	75 Ohms	Foam Polyethylene (FPE)	Braid	Copper, Bare	85	Solid	Polyethylene (PE)	7.24 mm	0.285 in	10.29 mm	0.405 in	Enter Number of Feet in Order Quantity	500 '	152.4 m
Amphenol Times Microwave Systems LMR-400-UF-DB	85 °C	-40 °C	Aluminum, Copper, Tinned	Black	Coaxial	50 Ohms	Foam Polyethylene (FPE)	Braid	Copper, Bare	83		Thermoplastic Elastomer (TPE)	7.24 mm	0.285 in	10.29 mm	0.405 in				Direct Burial, Watertight
Amphenol Times Microwave Systems LMR-400-75-LSZH	85 °C	-40 °C	Aluminum, Copper, Tinned	Black	Coaxial	75 Ohms	Foam Polyethylene (FPE)	Braid	Copper, Bare	85	Solid	Low Smoke Zero Halogen (LSZH), Polyethylene (PE)	7.24 mm	0.285 in	10.29 mm	0.405 in
Amphenol Times Microwave Systems LMR-400-75-FR	85 °C	-40 °C	Aluminum, Copper, Tinned	Black	Coaxial	75 Ohms	Foam Polyethylene (FPE)	Braid	Copper, Bare	85	Solid	Polyethylene (PE)	7.24 mm	0.285 in	10.29 mm	0.405 in				Fire Retardant
Amphenol Times Microwave Systems LMR-400-PVC-W	85 °C	-40 °C	Aluminum, Copper, Tinned		Coaxial	50 Ohms	Foam Polyethylene (FPE)	Braid	Aluminum, Copper Coated	84	Solid	Poly-Vinyl Chloride (PVC)	7.24 mm	0.285 in	10.29 mm	0.405 in
Amphenol Times Microwave Systems LMR-400	85 °C	-40 °C	Aluminum, Copper, Tinned	Black	Coaxial	50 Ohms	Foam Polyethylene (FPE)	Braid	Aluminum, Copper Coated	84	Solid	Polyethylene (PE)	7.24 mm	0.285 in	10.29 mm	0.405 in					10 ft, 100 ft	3.05 m, 30.48 m	15.24 m, 76.2 m	50 ft, 3000 "
Amphenol Times Microwave Systems LMR-400-DB	85 °C	-40 °C	Aluminum, Copper, Tinned	Black	Coaxial	50 Ohms	Foam Polyethylene (FPE)	Braid	Aluminum, Copper Coated	84	Solid	Polyethylene (PE)	7.24 mm	0.285 in	10.29 mm	0.405 in				Direct Burial, Watertight	10 ft, 100 ft	3.05 m, 30.48 m	15.24 m	50 ft
