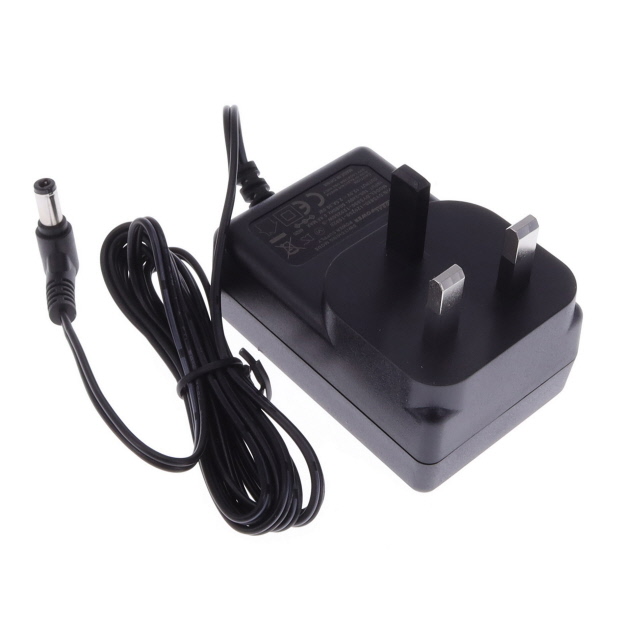

15DYS830-120250W-3-2.5
ActiveIDEAL POWER
AC/DC WALL MOUNT ADAPTER 12V 30W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
15DYS830-120250W-3-2.5
ActiveIDEAL POWER
AC/DC WALL MOUNT ADAPTER 12V 30W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 15DYS830-120250W-3-2.5 | 15DYS830 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Approval Agency | CE | CE, TUV, cULus, CE, UL, TUV |
| Cord Length | - | 1.5 m |
| Cord Length | - | 59 in |
| Current - Output (Max) [Max] | 2.5 A | 1 - 4 A |
| Efficiency | Level VI | Level VI |
| Form | Wall Mount (Class I) | Wall Mount (Class II), Wall Mount (Class I) |
| Input Connector | BS 1363 | CEE 7/16, NEMA 1-15P, Multi-Blade (Included), BS 1363 |
| Input Type | Fixed Blade | Fixed Blade, Multi-Blade (Included) |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Output Connector | - | Barrel Plug |
| Output Connector | - | 2.1 - 5.5 mm |
| Output Connector | - | 12 mm |
| Polarization | - | Positive Center |
| Power (Watts) | 30 W | 20 - 30 W |
| Region Utilized | United Kingdom | Europe, North America, International, United Kingdom |
| Size / Dimension [x] | 76.8 mm | 76.8 mm |
| Size / Dimension [x] | 3.02 " | 3.02 " |
| Size / Dimension [y] | 50 mm | 47.5 - 50 mm |
| Size / Dimension [y] | 1.96 " | 1.87 - 1.96 in |
| Size / Dimension [z] | 1.22 in | 1.22 - 1.38 in |
| Size / Dimension [z] | 31 mm | 31 - 35 mm |
| Standard Number | 62368-1 | 62368-1 |
| Voltage - Input [Max] | 264 VAC | 264 VAC |
| Voltage - Input [Min] | 90 VAC | 90 VAC |
| Voltage - Output | 12 V | 5 - 30 VDC |
| Weight | - | 200.03 g |
| Weight | - | 0.441 lb |
15DYS830 Series
AC/DC WALL MOUNT ADAPTER 30V 30W
| Part | Approval Agency | Power (Watts) | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Region Utilized | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Standard Number | Input Connector | Input Type | Form | Current - Output (Max) [Max] | Applications | Voltage - Output | Voltage - Input [Min] | Voltage - Input [Max] | Cord Length | Cord Length | Polarization | Output Connector | Output Connector [diameter] | Output Connector [z] | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDEAL POWER 15DYS830-300100W-2-2.5 | CE, TUV | 30 W | 48 mm | 1.22 in | 3.02 " | 1.89 in | 76.8 mm | 31 mm | Europe | 40 °C | 0 °C | Level VI | 62368-1 | CEE 7/16 | Fixed Blade | Wall Mount (Class II) | 1 A | ITE (Commercial) | 30 VDC | 90 VAC | 264 VAC | ||||||||
IDEAL POWER 15DYS830-120250W-1-2.5 | cULus | 30 W | 48 mm | 1.22 in | 3.02 " | 1.89 in | 76.8 mm | 31 mm | North America | 40 °C | 0 °C | Level VI | 62368-1 | NEMA 1-15P | Fixed Blade | Wall Mount (Class II) | 2.5 A | ITE (Commercial) | 12 V | 90 VAC | 264 VAC | ||||||||
IDEAL POWER 15DYS830-050400W-K | CE, cULus, TUV, UL | 20 W | 47.5 mm | 1.38 in | 3.02 " | 1.87 " | 76.8 mm | 35 mm | International | 40 °C | 0 °C | Level VI | 62368-1 | Multi-Blade (Included) | Multi-Blade (Included) | Wall Mount (Class II) | 4 A | ITE (Commercial) | 5 V | 90 VAC | 264 VAC | 1.5 m | 59 in | Positive Center | Barrel Plug | 2.1 mm, 5.5 mm | 12 mm | 200.03 g | 0.441 lb |
IDEAL POWER 15DYS830-240125W-1-2.5 | cULus | 30 W | 48 mm | 1.22 in | 3.02 " | 1.89 in | 76.8 mm | 31 mm | North America | 40 °C | 0 °C | Level VI | 62368-1 | NEMA 1-15P | Fixed Blade | Wall Mount (Class II) | 1.25 A | ITE (Commercial) | 24 V | 90 VAC | 264 VAC | ||||||||
IDEAL POWER 15DYS830-050400W-2-2.5 | CE, TUV | 20 W | 48 mm | 1.22 in | 3.02 " | 1.89 in | 76.8 mm | 31 mm | Europe | 40 °C | 0 °C | Level VI | 62368-1 | CEE 7/16 | Fixed Blade | Wall Mount (Class II) | 4 A | ITE (Commercial) | 5 V | 90 VAC | 264 VAC | ||||||||
IDEAL POWER 15DYS830-120250W-3-2.5 | CE | 30 W | 50 mm | 1.22 in | 3.02 " | 1.96 " | 76.8 mm | 31 mm | United Kingdom | 40 °C | 0 °C | Level VI | 62368-1 | BS 1363 | Fixed Blade | Wall Mount (Class I) | 2.5 A | ITE (Commercial) | 12 V | 90 VAC | 264 VAC | ||||||||
IDEAL POWER 15DYS830-120250W-K | CE, cULus, TUV, UL | 30 W | 47.5 mm | 1.38 in | 3.02 " | 1.87 " | 76.8 mm | 35 mm | International | 40 °C | 0 °C | Level VI | 62368-1 | Multi-Blade (Included) | Multi-Blade (Included) | Wall Mount (Class II) | 2.5 A | ITE (Commercial) | 12 V | 90 VAC | 264 VAC | 1.5 m | 59 in | Positive Center | Barrel Plug | 2.1 mm, 5.5 mm | 12 mm | 200.03 g | 0.441 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 13.57 | |
| 5 | $ 12.47 | |||
| 10 | $ 12.03 | |||
| 25 | $ 11.47 | |||
| 96 | $ 10.69 | |||
| 192 | $ 10.32 | |||
| 288 | $ 10.10 | |||
| 576 | $ 9.74 | |||
Description
General part information
15DYS830 Series
12V 30 W AC/DC External Wall Mount (Class I) Adapter Fixed Blade Input
