2905885
ActivePhoenix Contact
PACT MCR-V2-6015-85-800-1A-1
2905885
ActivePhoenix Contact
PACT MCR-V2-6015-85-800-1A-1
Description
General part information
2905885

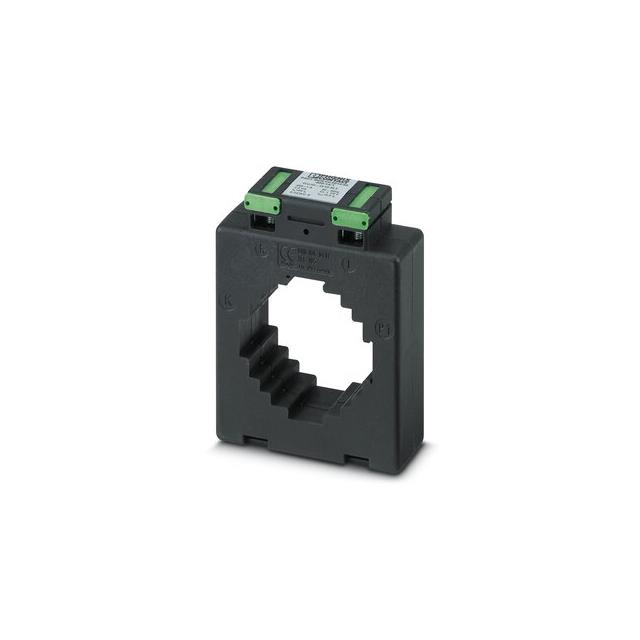

800 A Current Sense Transformer 50Hz ~ 60Hz DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | 2905885 |
|---|---|
| Current Rating | 800 A |
| Frequency Range (Max) | 60 Hz |
| Frequency Range (Min) | 50 Hz |
| Height - Seated (Max) | 4.252 in |
| Mounting Type | DIN Rail |
| Size / Dimension Length | 3.346 in |
| Size / Dimension Width | 1.181 in |
| Termination Style | Terminal Block |
| Type | Non-Invasive (Solid Core) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
