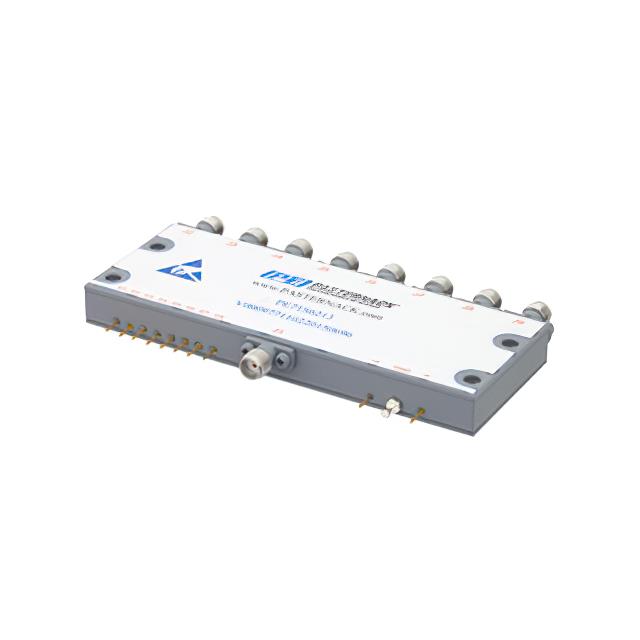

PE71S6213
ActivePasternack
ABSORPTIVE SP8T PIN DIODE SWITCH
PE71S6213
ActivePasternack
ABSORPTIVE SP8T PIN DIODE SWITCH
Description
General part information
PE71S6213
RF Switch IC General Purpose SP8T 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | PE71S6213 |
|---|---|
| Circuit | SP8T |
| Frequency Range (Max) | 18 GHz |
| Frequency Range (Min) | 500 MHz |
| Impedance | 50 Ohm |
| Insertion Loss | 4.5 dB |
| Isolation | 55 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| RF Type | General Purpose |
| Test Frequency | 18 GHz |
| Topology | Absorptive |
| Voltage - Supply | 70 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
