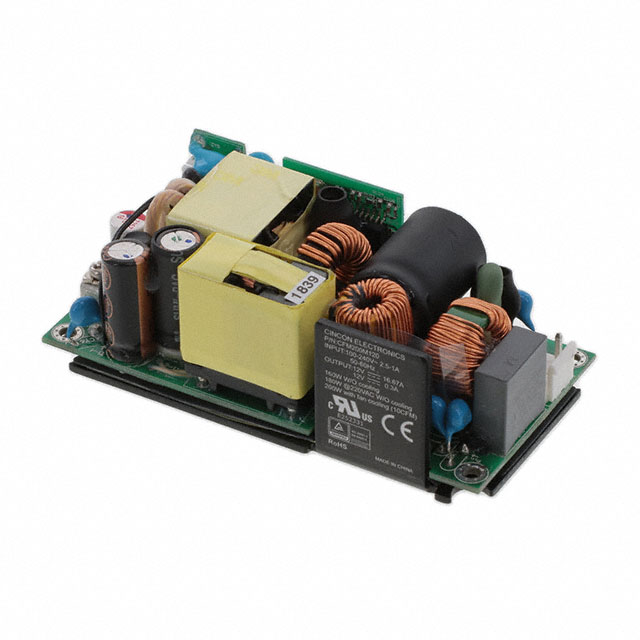

CFM200M120

Obsolete

Cincon Electronics Co. LTD

AC/DC CONVERTER 12V 200W

Search across all available documentation for this part.

Obsolete

Cincon Electronics Co. LTD

AC/DC CONVERTER 12V 200W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER 12V 200W

Part	Efficiency	Type	Power (Watts)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output 1	Number of Outputs	Features	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Isolation	Approval Agency	Applications
Cincon Electronics Co. LTD CFM200M120	92 %	Open Frame	200 W	Chassis Mount	-20 °C	80 ¯C	12 V	90 VAC	264 VAC	16.67 A	1	Universal Input	2 in	1.48 "	37.6 mm	50.8 mm	101.6 mm	4 in	4000 V	CE, cURus, FCC, TUV	ITE (Commercial), Medical
Cincon Electronics Co. LTD CFM200M240	93.5 %	Open Frame	200 W	Chassis Mount	-20 °C	80 ¯C	24 V	90 VAC	264 VAC	8.33 A	1	Universal Input	2 in	1.48 "	37.6 mm	50.8 mm	101.6 mm	4 in	4000 V	CE, cURus, FCC, TUV	ITE (Commercial), Medical
Cincon Electronics Co. LTD CFM200M240C	93.5 %	Enclosed	200 W	Chassis Mount	-20 °C	80 ¯C	24 V	90 VAC	264 VAC	8.33 A	1	Universal Input	2.44 "	1.59 "	40.5 mm	62 mm	117 mm	4.61 "	4000 V	CE, cURus, FCC, TUV	ITE (Commercial), Medical
