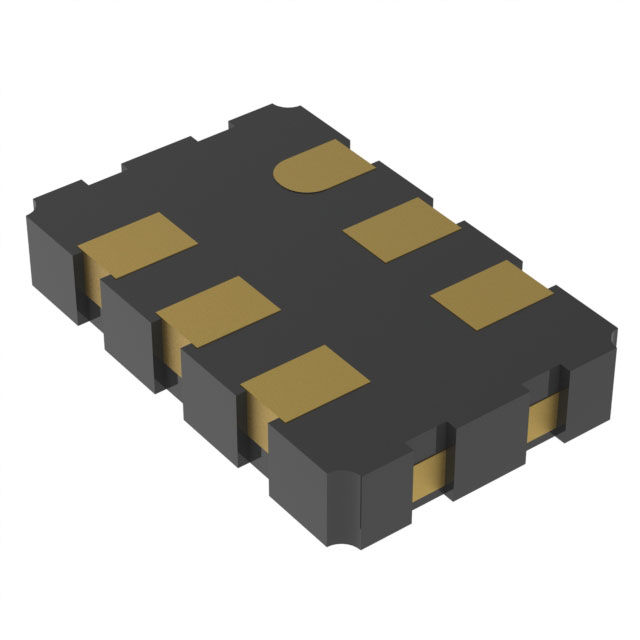

510BCA212M500BAG
ActiveSkyworks Solutions Inc.
XTAL OSC XO 212.5000MHZ LVDS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
510BCA212M500BAG
ActiveSkyworks Solutions Inc.
XTAL OSC XO 212.5000MHZ LVDS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 510BCA212M500BAG | 510BCA Series |
|---|---|---|
| Available Frequency Range | - | 124.999 - 250 MHz |
| Available Frequency Range | - | 100 - 170 MHz |
| Base Resonator | Crystal | Crystal |
| Current - Supply (Disable) (Max) [Max] | 18 mA | 18 mA |
| Current - Supply (Max) [Max] | 23 mA | 23 mA |
| Frequency | 212.5 MHz | 10 - 638 MHz |
| Frequency Stability | 20 ppm | 20 ppm |
| Frequency Stability (Total) | - | 30 ppm |
| Function | Enable/Disable | Enable/Disable |
| Height - Seated (Max) | 1.28 mm | 1.28 - 1.33 mm |
| Height - Seated (Max) | - | 1.8 mm |
| Height - Seated (Max) | - | 0.052 in |
| Height - Seated (Max) [Max] | 0.05 in | 0.05 - 0.071 in |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output | LVDS | LVDS |
| Package / Case | 6-SMD, No Lead | 6-SMD, No Lead |
| Size / Dimension [x] | 0.197 in | 0.197 - 0.276 in |
| Size / Dimension [x] | 5 mm | 5 - 7 mm |
| Size / Dimension [y] | 0.126 " | 0.126 - 0.197 " |
| Size / Dimension [y] | 3.2 mm | 3.2 - 5 mm |
| Type | XO (Standard) | XO (Standard) |
| Voltage - Supply | 3.3 V | 3.3 V |
510BCA Series
XTAL OSC PROG XO LVDS 3.3V 20PPM
...
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Function | Voltage - Supply | Frequency Stability (Total) | Package / Case | Frequency Stability | Base Resonator | Mounting Type | Current - Supply (Max) [Max] | Output | Available Frequency Range [Max] | Available Frequency Range [Min] | Current - Supply (Disable) (Max) [Max] | Type | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) | Height - Seated (Max) [Max] | Frequency | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Skyworks Solutions Inc. 510BCA-BBAG | 0.197 in | 0.126 " | 3.2 mm | 5 mm | Enable/Disable | 3.3 V | 30 ppm | 6-SMD, No Lead | 20 ppm | Crystal | Surface Mount | 23 mA | LVDS | 169.999 MHz | 125 MHz | 18 mA | XO (Standard) | 85 °C | -40 °C | 1.28 mm | 0.05 in | |||
Skyworks Solutions Inc. 510BCA135M000BAG | 0.197 in | 0.126 " | 3.2 mm | 5 mm | Enable/Disable | 3.3 V | 6-SMD, No Lead | 20 ppm | Crystal | Surface Mount | 23 mA | LVDS | 18 mA | XO (Standard) | 85 °C | -40 °C | 1.28 mm | 0.05 in | 135 MHz | |||||
Skyworks Solutions Inc. 510BCA148M352BAGR | 0.197 in | 0.126 " | 3.2 mm | 5 mm | Enable/Disable | 3.3 V | 6-SMD, No Lead | 20 ppm | Crystal | Surface Mount | 23 mA | LVDS | 18 mA | XO (Standard) | 85 °C | -40 °C | 1.28 mm | 0.05 in | 148.352 MHz | |||||
Skyworks Solutions Inc. 510BCA000244BAG | 0.197 in | 0.126 " | 3.2 mm | 5 mm | Enable/Disable | 3.3 V | 6-SMD, No Lead | 20 ppm | Crystal | Surface Mount | 23 mA | LVDS | 18 mA | XO (Standard) | 85 °C | -40 °C | 1.28 mm | 0.05 in | 148.351648 MHz | |||||
Skyworks Solutions Inc. 510BCA150M000AAGR | 0.276 " | 0.197 " | 5 mm | 7 mm | Enable/Disable | 3.3 V | 6-SMD, No Lead | 20 ppm | Crystal | Surface Mount | 23 mA | LVDS | 18 mA | XO (Standard) | 85 °C | -40 °C | 0.071 " | 150 MHz | 1.8 mm | |||||
Skyworks Solutions Inc. 510BCA162M500AAG | 0.276 " | 0.197 " | 5 mm | 7 mm | Enable/Disable | 3.3 V | 6-SMD, No Lead | 20 ppm | Crystal | Surface Mount | 23 mA | LVDS | 18 mA | XO (Standard) | 85 °C | -40 °C | 0.071 " | 162.5 MHz | 1.8 mm | |||||
Skyworks Solutions Inc. 510BCA212M500BAGR | 0.197 in | 0.126 " | 3.2 mm | 5 mm | Enable/Disable | 3.3 V | 6-SMD, No Lead | 20 ppm | Crystal | Surface Mount | 23 mA | LVDS | 18 mA | XO (Standard) | 85 °C | -40 °C | 1.28 mm | 0.05 in | 212.5 MHz | |||||
Skyworks Solutions Inc. 510BCA000244AAGR | 0.276 " | 0.197 " | 5 mm | 7 mm | Enable/Disable | 3.3 V | 6-SMD, No Lead | 20 ppm | Crystal | Surface Mount | 23 mA | LVDS | 18 mA | XO (Standard) | 85 °C | -40 °C | 0.071 " | 148.351648 MHz | 1.8 mm | |||||
Skyworks Solutions Inc. 510BCA25M0000BAGR | 0.197 in | 0.126 " | 3.2 mm | 5 mm | Enable/Disable | 3.3 V | 6-SMD, No Lead | 20 ppm | Crystal | Surface Mount | 23 mA | LVDS | 18 mA | XO (Standard) | 85 °C | -40 °C | 1.28 mm | 0.05 in | 25 MHz | |||||
Skyworks Solutions Inc. 510BCA79M2000BAG | 0.197 in | 0.126 " | 3.2 mm | 5 mm | Enable/Disable | 3.3 V | 6-SMD, No Lead | 20 ppm | Crystal | Surface Mount | 23 mA | LVDS | 18 mA | XO (Standard) | 85 °C | -40 °C | 1.28 mm | 0.05 in | 79.2 MHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 200 | $ 6.64 | |
Description
General part information
510BCA Series
212.5 MHz XO (Standard) LVDS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
