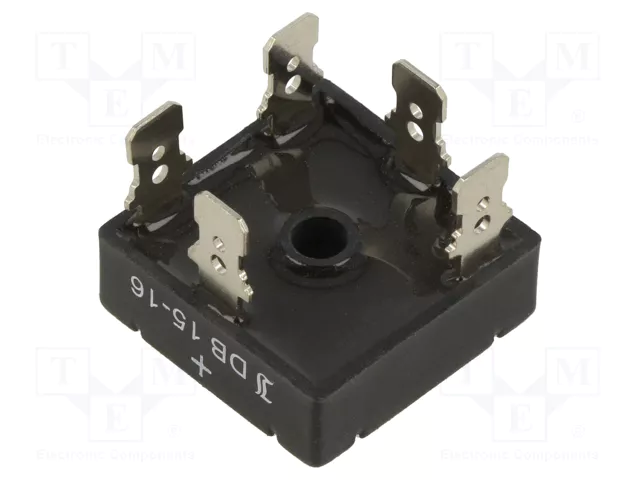

DB15-16
ActiveDiotec Semiconductor
BRIDGE RECTIFIER: THREE-PHASE; URMAX: 1.6KV; IF: 15A; IFSM: 350A
DB15-16
ActiveDiotec Semiconductor
BRIDGE RECTIFIER: THREE-PHASE; URMAX: 1.6KV; IF: 15A; IFSM: 350A
Description
General part information
DB15-16
BRIDGE RECTIFIER: THREE-PHASE; URMAX: 1.6KV; IF: 15A; IFSM: 350A
Technical Specifications
Parameters and characteristics for this part
| Specification | DB15-16 |
|---|---|
| Current - Average Rectified (Io) | 15 A |
| Current - Reverse Leakage | 10 µA |
| Diode Type | Three Phase |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -50 °C |
| Package / Case | 5-Square, DB-35 |
| Package Name | DB |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) | 1.05 V |
| Voltage - Peak Reverse (Max) | 1.6 kV |
