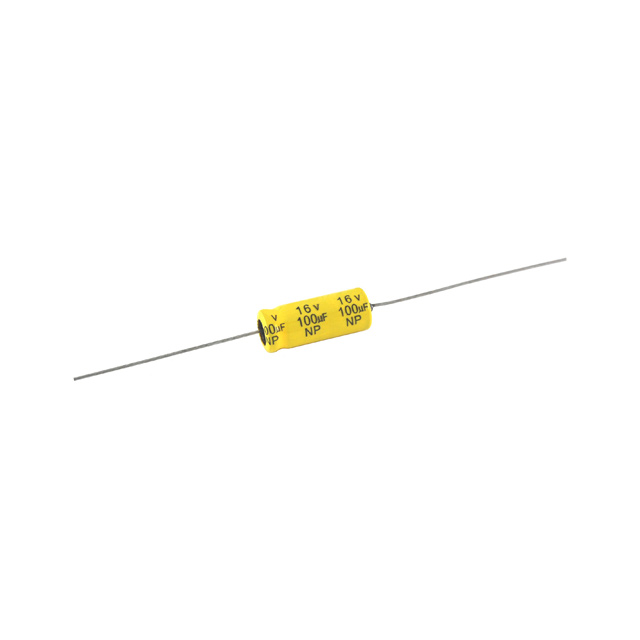

NPA100M16
ActiveNTE Electronics, Inc
CAP ALUM 100UF 20% 16V AXIAL TH
NPA100M16
ActiveNTE Electronics, Inc
CAP ALUM 100UF 20% 16V AXIAL TH
Description
General part information
NPA100M16
100 µF 16 V Aluminum Electrolytic Capacitors Axial, Can 1000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | NPA100M16 |
|---|---|
| Applications | General Purpose |
| Capacitance | 100 µF |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Axial |
| Polarization | Bi-Polar |
| Size / Dimension Diameter | 0.394 in |
| Size / Dimension Length | 0.826 in |
| Tolerance | 20 % |
| Voltage - Rated | 16 V |
