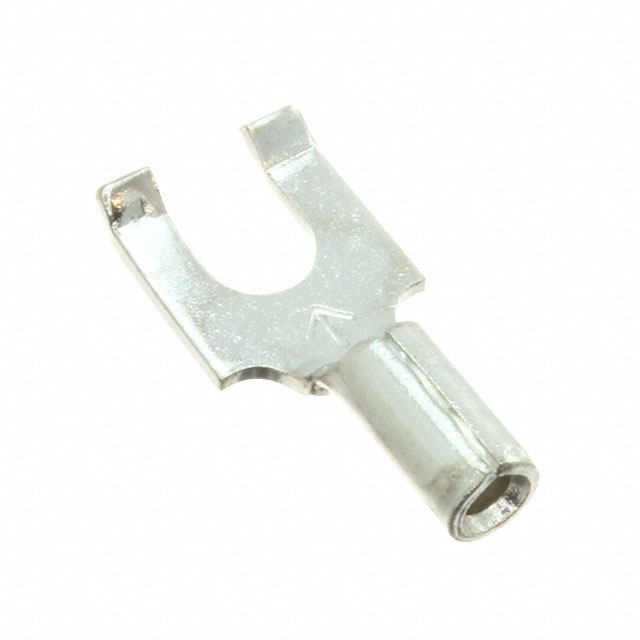

BS-21-6

Active

3M (TC)

22-18 AWG NON-INSULATED BUTTED SEAM FLANGED BLOCK FORK TERMINA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BS-21-6

Contact Finish	Tin
Contact Material	ETP, Copper
Features	Butted Seam
Insulation	Non-Insulated
Insulation Diameter [diameter]	1.78 mm
Insulation Diameter [diameter]	0.07 in
Length - Overall [x]	0.65 "
Length - Overall [x]	16.5 mm
Length - Ring Center to Termination [x]	0.25 in
Length - Ring Center to Termination [x]	6.35 mm
Length - Termination	6.35 mm
Length - Termination [x]	0.25 "
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	6 Stud
Terminal Type	Flanged
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

BS-21 Series

Part	Termination	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Insulation	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Terminal Type	Features	Length - Termination	Length - Termination [x]	Length - Overall [x]	Length - Overall [x]	Contact Finish	Mounting Type	Stud/Tab Size	Length - Overall	Length - Termination	Color	Insulation Diameter	Stud/Tab Size	Material - Insulation	Length - Termination [x]	Width - Outer Edges [y]	Width - Outer Edges [y]
3M (TC) BS-21-6	Crimp	22 AWG	17.5 AWG	Copper ETP	Non-Insulated	1.78 mm	0.07 in	0.25 in	6.35 mm	Flanged	Butted Seam	6.35 mm	0.25 "	0.65 "	16.5 mm	Tin	Free Hanging (In-Line)	6 Stud
3M (TC) BS-21-8-NB	Crimp	22 AWG	17.5 AWG	Copper ETP	Insulated		0.145 "	0.25 in	6.35 mm	Flanged		11.18 mm		0.84 in		Tin	Free Hanging (In-Line)		21.34 mm	0.44 "	Red	3.68 mm	8 Stud	Nylon Polyamide (PA)
3M (TC) BS-21-10-W	Crimp	22 AWG	17.5 AWG		Non-Insulated			0.25 in	6.35 mm	Flanged	Brazed Seam	6.35 mm	0.25 "	0.65 "	16.51 mm		Free Hanging (In-Line)	10 Stud
3M (TC) BS-21-6-NB	Crimp	22 AWG	17.5 AWG	Copper ETP	Insulated		0.145 "	0.25 in	6.35 mm	Flanged		11.18 mm		0.84 in		Tin	Free Hanging (In-Line)	6 Stud	21.34 mm	0.44 "	Red	3.68 mm		Nylon Polyamide (PA)
3M (TC) BS-21-10-P	Crimp	22 AWG	17.5 AWG	Copper ETP	Insulated		0.145 "	0.25 in	6.35 mm	Flanged	Butted Seam		0.45 in	0.85 "	21.59 mm	Tin	Free Hanging (In-Line)	10 Stud			Red	3.68 mm		Vinyl	11.43 mm
3M (TC) BS-21-6S-NB	Crimp	22 AWG	17.5 AWG	Copper ETP	Insulated		0.145 "	0.25 in	6.35 mm	Flanged		11.18 mm		0.82 in	20.83 mm	Tin	Free Hanging (In-Line)	6 Stud		0.44 "	Red	3.68 mm		Nylon Polyamide (PA)		0.25 "	6.35 mm
3M (TC) BS-21-6-P	Crimp	22 AWG	17.5 AWG	Copper ETP	Insulated		0.145 "	0.25 in	6.35 mm	Flanged	Butted Seam		0.45 in	0.85 "	21.59 mm	Tin	Free Hanging (In-Line)	6 Stud			Red	3.68 mm		Vinyl	11.43 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.23
		10	$ 0.20
		25	$ 0.18
		50	$ 0.16
		100	$ 0.15
		250	$ 0.13
		500	$ 0.13
		1000	$ 0.11
		3000	$ 0.10
Newark	Each	1000	$ 0.14
		5000	$ 0.13

Description

General part information

BS-21 Series

6 Stud Spade Terminal Connector Crimp 18-22 AWG
