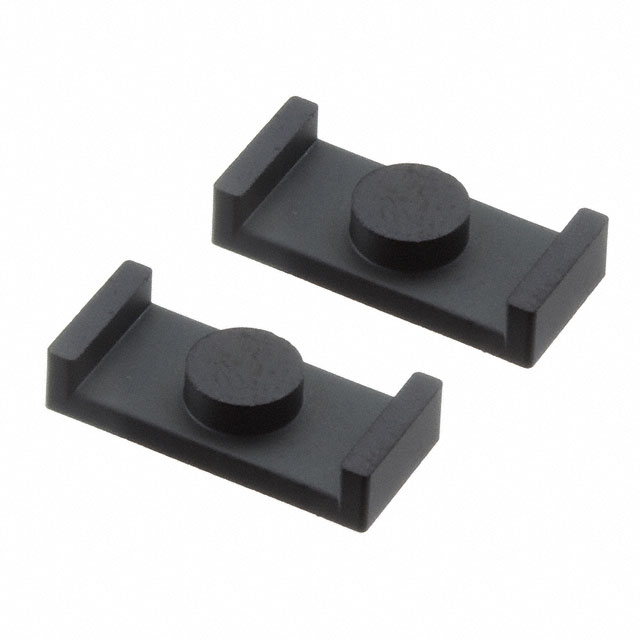

Specification	B65513J0000R092

Core Factor (ΣI/A) mm⁻¹	1.1 mm⁻¹
Core Type	ER
Effective Area (Ae)	17.6 mm²
Effective Length (le)	19 mm
Effective Magnetic Volume (Ve)	333 mm³
Effective Permeability (µe)	970
Finish	Uncoated
Gap	Ungapped
Height	0.116 in
Inductance Factor (Al)	1.1 µH
Initial Permeability (µi)	1500
Length	0.571 in
Material	N92
Package Length	14.5 mm
Package Name	ER
Package Width	6 mm
Tolerance (Negative)	20 %
Tolerance (Positive)	30 %
Width	0.264 in
