CA767K07984

Active

Switchcraft Inc.

CBL ASSY 2.1MM PLUG-CBL RND 6.6'

Search across all available documentation for this part.

Active

Switchcraft Inc.

CBL ASSY 2.1MM PLUG-CBL RND 6.6'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CA767K07984	CA767K Series

Cable Type	Round	Round
Connector Type [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Length	-	3.3 - 32.8 '
Length	-	1 - 10.01 m
Length [x]	6.6 ft	6.6 ft
Length [x]	2 m	2 m
Shielding	Unshielded	Unshielded
Style	Thread Lock, Plug, to Wire Leads	Sealed, Plug, to Wire Leads, Thread Lock
Usage	Thread Lock	Sealed, Thread Lock

DC POWER CORDS TWIST-LCKPLG 0.084IN STRT BLUNT 79IN

Part	Shielding	Length [x]	Length [x]	Usage	Cable Type	Connector Type [diameter]	Style	Length	Length
Switchcraft Inc. CA767KS07990	Unshielded	6.6 ft	2 m	Sealed, Thread Lock	Round	2.1 mm, 5.5 mm	Plug, Sealed, Thread Lock, to Wire Leads
Switchcraft Inc. CA767K07984	Unshielded	6.6 ft	2 m	Thread Lock	Round	2.1 mm, 5.5 mm	Plug, Thread Lock, to Wire Leads
Switchcraft Inc. CA767KS19790	Unshielded			Sealed, Thread Lock	Round	2.1 mm, 5.5 mm	Plug, Sealed, Thread Lock, to Wire Leads	16.4 '	5 m
Switchcraft Inc. CA767KS39490	Unshielded			Sealed, Thread Lock	Round	2.1 mm, 5.5 mm	Plug, Sealed, Thread Lock, to Wire Leads	32.8 '	10.01 m
Switchcraft Inc. CA767KS04084	Unshielded			Sealed, Thread Lock	Round	2.1 mm, 5.5 mm	Plug, Sealed, Thread Lock, to Wire Leads	3.3 ft	1 m
Switchcraft Inc. CA767KS39484	Unshielded			Sealed, Thread Lock	Round	2.1 mm, 5.5 mm	Plug, Sealed, Thread Lock, to Wire Leads	32.8 '	10.01 m
Switchcraft Inc. CA767KS04090	Unshielded			Sealed, Thread Lock	Round	2.1 mm, 5.5 mm	Plug, Sealed, Thread Lock, to Wire Leads	3.3 ft	1 m
Switchcraft Inc. CA767KS19784	Unshielded			Sealed, Thread Lock	Round	2.1 mm, 5.5 mm	Plug, Sealed, Thread Lock, to Wire Leads	16.4 '	5 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

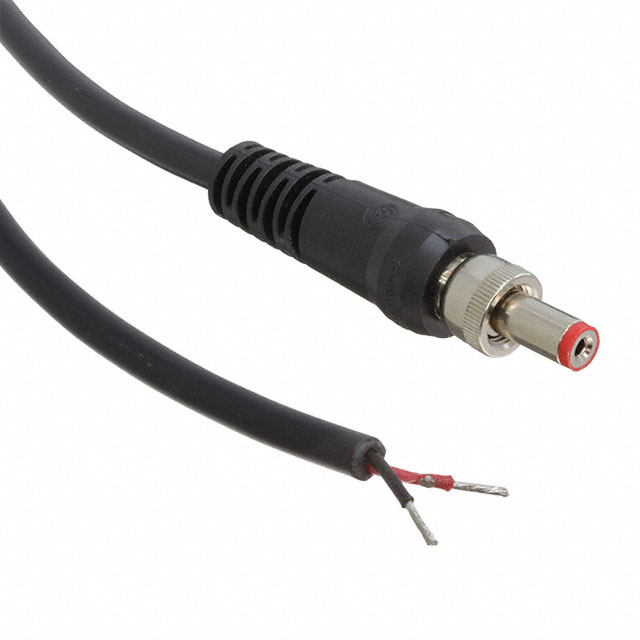

Cable Assembly 2.1mm ID, 5.5mm OD Plug, Thread Lock, to Wire Leads Round 6.6' (2.00m)
