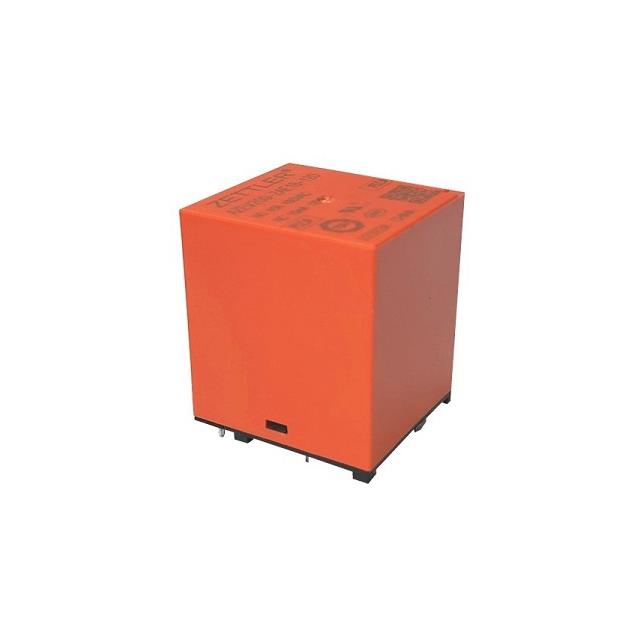

AZEV200-2AE1B-12D

Active

American Zettler

RELAY EV CHARGING 3PST 40A 12V

Search across all available documentation for this part.

Active

American Zettler

RELAY EV CHARGING 3PST 40A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AZEV200-2AE1B-12D	AZEV200 Series

Approval Agency	CQC, TUV, cURus	CQC, TUV, cURus
Coil Current	216 mA	108 - 432 mA
Coil Insulation	Class F	Class F
Coil Resistance	55.4 Ohms	13.9 - 221.5 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	12 - 24 VDC
Contact Form	3PST-2NO/1NC (2 Form A, 1 Form B)	3PST-2NO/1NC (2 Form A, 1 Form B)
Contact Material	Silver Nickel (AgNi), Silver Tin Oxide (AgSnO), Gold (Au)	Silver Nickel (AgNi), Silver Tin Oxide (AgSnO), Gold (Au)
Contact Rating (Current)	40 A	40 A
Load - Max Switching [Max]	19200 VA	19200 VA
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	9 VDC	4.5 - 18 VDC
Must Release Voltage	0.6 VDC	0.3 - 1.2 VDC
Operate Time	30 ms	30 ms
Operating Temperature [Max]	203 °F	203 °F
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	EV Charging	EV Charging
Release Time	10 ms	10 ms
Switching Voltage	480 VAC	480 VAC
Termination Style	PC Pin	PC Pin

RELAY EV CHARGING 3PST 40A 12V

Part	Operate Time	Approval Agency	Contact Material	Release Time	Contact Form	Coil Current	Termination Style	Coil Resistance	Coil Voltage	Must Release Voltage	Contact Rating (Current)	Mounting Type	Must Operate Voltage	Relay Type	Switching Voltage	Coil Type	Coil Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Load - Max Switching [Max]
American Zettler AZEV200-2AE1B-12D	30 ms	CQC, cURus, TUV	Gold (Au), Silver Nickel (AgNi), Silver Tin Oxide (AgSnO)	10 ms	3PST-2NO/1NC (2 Form A, 1 Form B)	216 mA	PC Pin	55.4 Ohms	12 VDC	0.6 VDC	40 A	Through Hole	9 VDC	EV Charging	480 VAC	Non Latching	Class F	-40 °C	203 °F	19200 VA
American Zettler AZEV200-2AE1B-24D	30 ms	CQC, cURus, TUV	Gold (Au), Silver Nickel (AgNi), Silver Tin Oxide (AgSnO)	10 ms	3PST-2NO/1NC (2 Form A, 1 Form B)	108 mA	PC Pin	221.5 Ohms	24 VDC	1.2 VDC	40 A	Through Hole	18 VDC	EV Charging	480 VAC	Non Latching	Class F	-40 °C	203 °F	19200 VA
American Zettler AZEV200-2AE1B-6D	30 ms	CQC, cURus, TUV	Gold (Au), Silver Nickel (AgNi), Silver Tin Oxide (AgSnO)	10 ms	3PST-2NO/1NC (2 Form A, 1 Form B)	432 mA	PC Pin	13.9 Ohms		0.3 VDC	40 A	Through Hole	4.5 VDC	EV Charging	480 VAC	Non Latching	Class F	-40 °C	203 °F	19200 VA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

EV Charging Relay 3PST-2NO/1NC (2 Form A, 1 Form B) 12VDC Coil Through Hole
