Description
General part information
09662286702

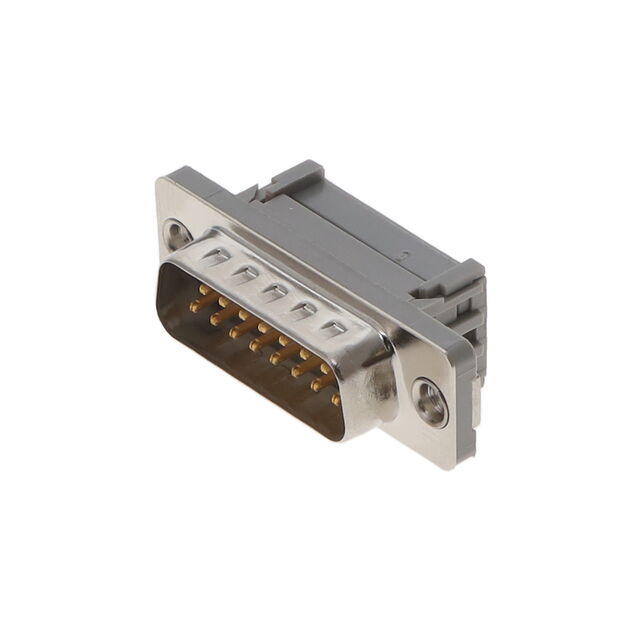

15 Position D-Sub Plug, Male Pins Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | 09662286702 |
|---|---|
| Connector Layout | A, DA |
| Connector Style | D-Sub |
| Connector Type | Male Pins, Plug |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating | 2 A |
| Dielectric Material | Glass Filled, Polybutylene Terephthalate (PBT), Polyester |
| Features | Feed Through, Grounding Indents |
| Flange Feature | Shell (4-40), Housing |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Shell Material, Finish | Steel |
| Shell Size | 2 |
| Termination | IDC, Ribbon Cable |
