M3CCK-3006R

Active

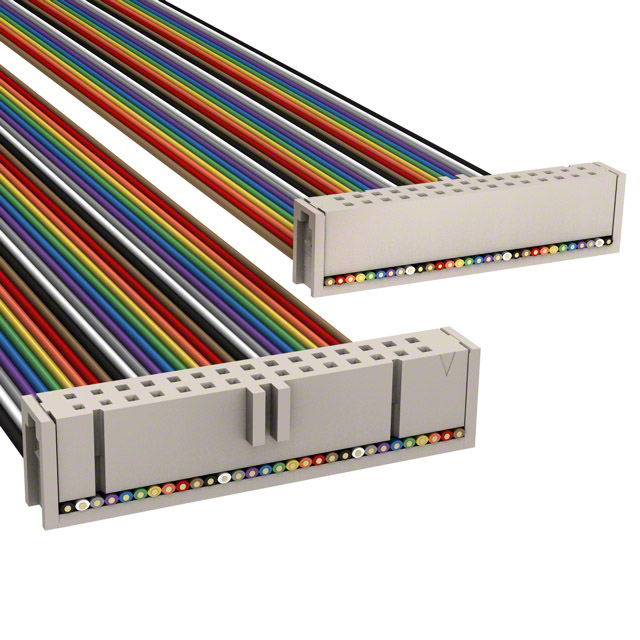

IDC CABLE - MKC30K/MC34M/MKC30K

Deep-Dive with AI

Search across all available documentation for this part.

Documents891 Series Datasheet 3302 Series +1

M3CCK-3006R

Active

IDC CABLE - MKC30K/MC34M/MKC30K

Deep-Dive with AI

Documents891 Series Datasheet 3302 Series +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.79
		10	$ 14.46
		25	$ 13.08
		50	$ 12.15
		100	$ 11.31
		250	$ 10.31
		500	$ 9.64
		1000	$ 9.04

Description

General part information

M3CCK Series

30 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

891 Series Datasheet

Datasheet

3302 Series

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3CCK-3006R	M3CCK Series

Cable Termination	IDC	IDC
Color	Ribbon, Multiple	Multiple, Twisted Pair (Flat), Ribbon, Multiple
Connector Type	Socket to Socket	Socket to Socket
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Polarizing Key	Polarizing Key
Length	152.4 mm	1.52 - 508 mm
Length	6 "	6 "
Length	0.5 '	0.5 '
Length	-	1.67 - 5 ft
Length	-	1.02 - 914.4 mm
Length	-	1.5 - 3.34 ft
Number of Positions	30	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3CCK Series

IDC CABLE - MKC60K/MC60F/MKC60K

Part	Length	Length	Pitch - Connector	Pitch - Connector	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Connector Type	Cable Termination	Shielding	Number of Rows	Features	Number of Positions	Color	Pitch - Cable	Pitch - Cable	Length	Length	Length [x]	Length [x]
3M M3CCK-6020K	508 mm	1.67 ft	0.1 in	2.54 mm	0.76 Ám	30 Áin	Gold	Socket to Socket	IDC	Unshielded	2	Polarizing Key	60	Multiple, Twisted Pair (Flat)	0.05 "	1.27 mm
3M M3CCK-5006R	152.4 mm		0.1 in	2.54 mm	0.76 Ám	30 Áin	Gold	Socket to Socket	IDC	Unshielded	2	Polarizing Key	50	Multiple, Ribbon	0.05 "	1.27 mm	6 "	0.5 '
3M M3CCK-2018J			0.1 in	2.54 mm	0.76 Ám	30 Áin	Gold	Socket to Socket	IDC	Unshielded	2	Polarizing Key	20		0.05 "	1.27 mm			457.2 mm	1.5 ft
3M M3CCK-3006J	152.4 mm		0.1 in	2.54 mm	0.76 Ám	30 Áin	Gold	Socket to Socket	IDC	Unshielded	2	Polarizing Key	30		0.05 "	1.27 mm	6 "	0.5 '
3M M3CCK-6036J			0.1 in	2.54 mm	0.76 Ám	30 Áin	Gold	Socket to Socket	IDC	Unshielded	2	Polarizing Key	60		0.05 "	1.27 mm			914.4 mm	3 ft
3M M3CCK-5036J			0.1 in	2.54 mm	0.76 Ám	30 Áin	Gold	Socket to Socket	IDC	Unshielded	2	Polarizing Key	50		0.05 "	1.27 mm			914.4 mm	3 ft
3M M3CCK-5036R			0.1 in	2.54 mm	0.76 Ám	30 Áin	Gold	Socket to Socket	IDC	Unshielded	2	Polarizing Key	50	Multiple, Ribbon	0.05 "	1.27 mm			914.4 mm	3 ft
3M M3CCK-4036J			0.1 in	2.54 mm	0.76 Ám	30 Áin	Gold	Socket to Socket	IDC	Unshielded	2	Polarizing Key	40		0.05 "	1.27 mm			914.4 mm	3 ft
3M M3CCK-2606J	152.4 mm		0.1 in	2.54 mm	0.76 Ám	30 Áin	Gold	Socket to Socket	IDC	Unshielded	2	Polarizing Key	26		0.05 "	1.27 mm	6 "	0.5 '
3M M3CCK-2036R			0.1 in	2.54 mm	0.76 Ám	30 Áin	Gold	Socket to Socket	IDC	Unshielded	2	Polarizing Key	20	Multiple, Ribbon	0.05 "	1.27 mm			914.4 mm	3 ft
