UX5040GE01
ActiveDiodes Inc

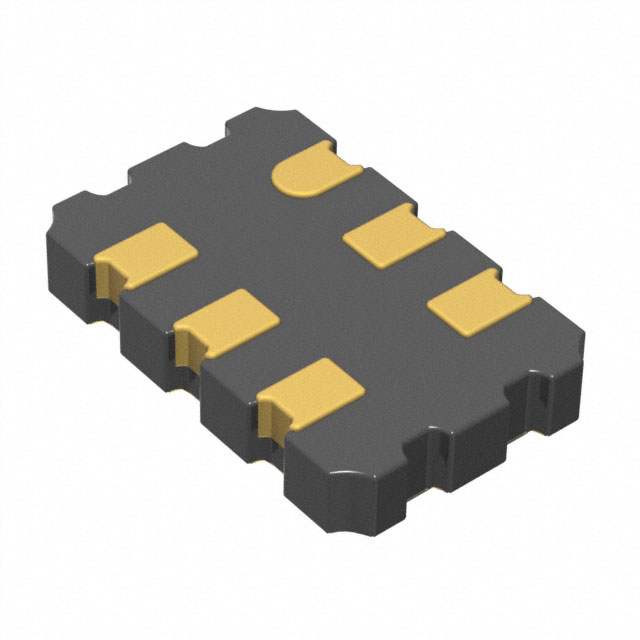

PECL OUTPUT CLOCK OSCILLATOR, 156.25MHZ NOM, ROHS COMPLIANT, CERAMIC, SMD, 6 PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UX5040GE01
ActiveDiodes Inc
PECL OUTPUT CLOCK OSCILLATOR, 156.25MHZ NOM, ROHS COMPLIANT, CERAMIC, SMD, 6 PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UX5040GE01 |
|---|---|
| Base Resonator | Crystal |
| Frequency | 156.25 MHz |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LVPECL |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 500 | $ 4.27 | |
Description
General part information
UX5040 Series
156.25 MHz XO (Standard) LVPECL Oscillator 3.3V
