Description
General part information
IVT-S-300-U3-I-CAN1-12/24

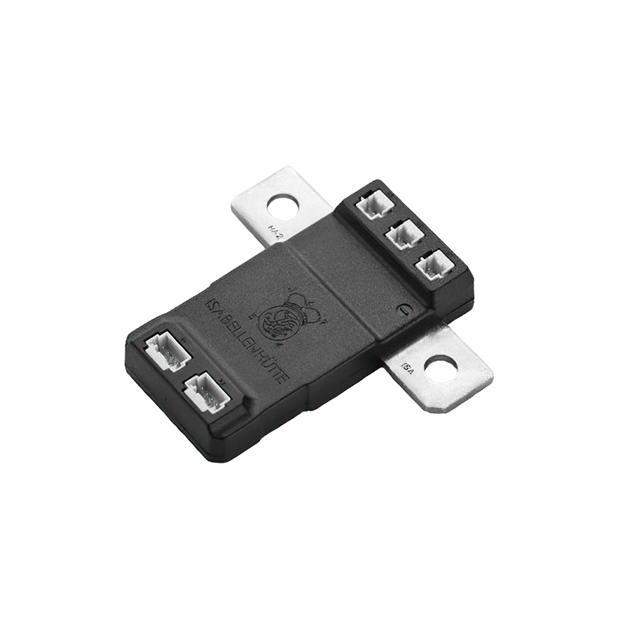

Current Sensor 300A 3 Channel Shunt Bidirectional Module
Technical Specifications
Parameters and characteristics for this part
| Specification | IVT-S-300-U3-I-CAN1-12/24 |
|---|---|
| Accuracy | 0.4 % |
| Current - Sensing | 300 A |
| Current - Supply (Max) | 80 mA |
| For Measuring | DC |
| Linearity | 0.01 % |
| Mounting Type | Chassis Mount |
| Number of Channels | 3 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CAN Bus |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensor Type | Shunt |
| Voltage - Supply (Maximum) | 40 VAC |
| Voltage - Supply (Minimum) | 5.5 V |
