Magnetics - Transformer, Inductor Components
9478112002
ActiveFair-Rite Products Corp.

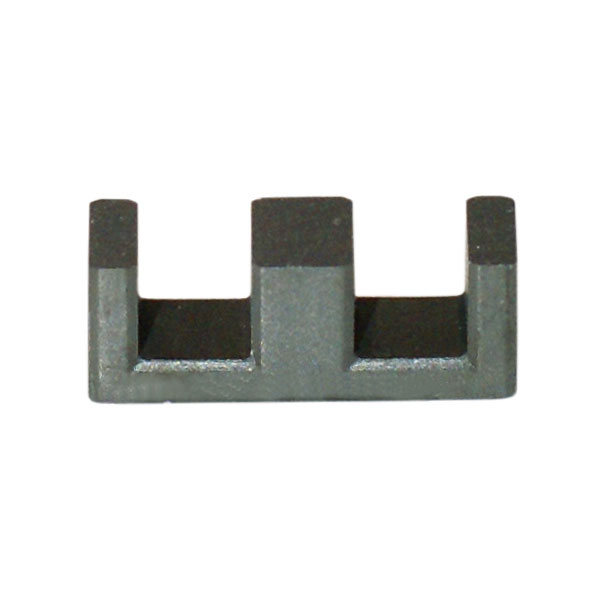

FERRITE CORE E 78 SET
Magnetics - Transformer, Inductor Components
9478112002
ActiveFair-Rite Products Corp.
FERRITE CORE E 78 SET
Technical Specifications
Parameters and characteristics for this part
| Specification | 9478112002 |
|---|---|
| Core Factor (ΣI/A) mm⁻¹ | 81 mm⁻¹ |
| Core Type | E |
| Effective Area (Ae) | 86 mm² |
| Effective Length (le) | 69.7 mm |
| Effective Magnetic Volume (Ve) | 5990 mm³ |
| Finish | Uncoated |
| Gap | Ungapped |
| Height | 0.565 in |
| Initial Permeability (µi) | 2300 |
| Material | 78 |
| Material Temperature Rating | 78 °C |
| Minimum Core Cross Section (Amin) (mm²) | 79 mm² |
| Tolerance | 25 % |
| Width | 0.374 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
CAD
3D models and CAD resources for this part
Description
General part information
9478112002
Uncoated 78 Ferrite Core E Type Length 0.374" (9.50mm) Width Diameter 0.565" (14.35mm) Height
