FAA.00.250.NTA

Active

LEMO

CONN NIMCAMA PLG STR 50OHM SOLDR

Search across all available documentation for this part.

Active

LEMO

CONN NIMCAMA PLG STR 50OHM SOLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FAA.00.250.NTA	FAA.00 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Center Contact Material	Brass	Brass
Center Contact Plating	Gold	Gold
Connector Style	NIM-CAMAC CD/N 549	NIM-CAMAC CD/N 549, Triaxial
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Solder Cup	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK)
Fastening Type	Push-Pull	Push-Pull
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Nut, 1 Connector	1 Nut, 1 Connector
Ingress Protection	IP50	IP50
Mating Cycles	5000	5000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Ports	1	1
Operating Temperature [Max]	260 ░C	260 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shield Termination	Solder	Solder
Voltage Rating	700 VDC	700 VDC

CONN NIMCAMA PLG STR 50OHM SOLDR

Part	Mounting Feature	Includes	Mating Cycles	Connector Style	Contact Termination	Shield Termination	Voltage Rating	Dielectric Material	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Number of Ports	Body Material	Connector Type	Body Finish	Ingress Protection	Fastening Type	Impedance	Housing Color
LEMO FAA.00.250.NTA	Bulkhead - Rear Side Nut	1 Connector, 1 Nut	5000	NIM-CAMAC CD/N 549	Solder Cup	Solder	700 VDC	Polytetrafluoroethylene (PTFE)	Gold	-55 °C	260 ░C	Brass	1	Brass	Male Pin, Plug	Nickel	IP50	Push-Pull	50 Ohms	Silver
LEMO FAA.00.650.NLA	Bulkhead - Rear Side Nut	1 Connector, 1 Nut	5000	NIM-CAMAC CD/N 549, Triaxial	Solder Cup	Solder	700 VDC	Polyetheretherketone (PEEK)	Gold	-55 °C	260 ░C	Brass	1	Brass	Male Pin, Plug	Nickel	IP50	Push-Pull	50 Ohms	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

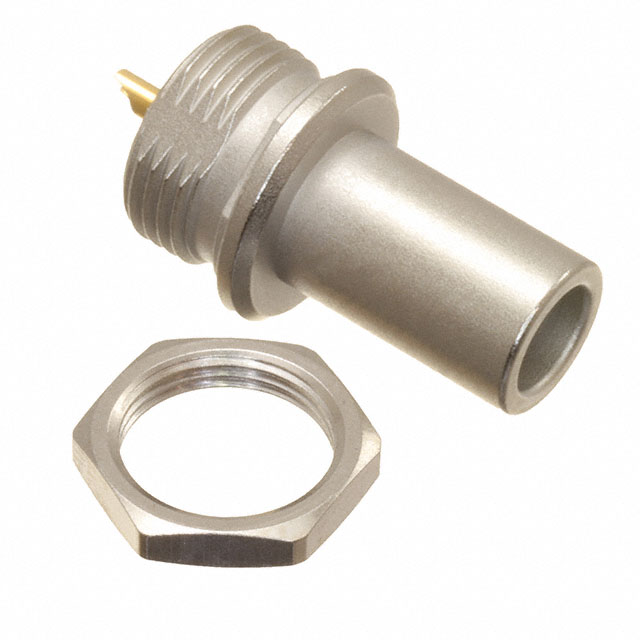

NIM-CAMAC CD/N 549 Connector Plug, Male Pin 50 Ohms Panel Mount Solder Cup
