2852353

Active

Phoenix Contact

RELAY GEN PURPOSE DPST 5A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE DPST 5A 24V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE DPST 5A 24V

Part	Release Time	Coil Current	Switching Voltage	Termination Style	Coil Resistance	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Features	Approval Agency	Coil Type	Contact Form	Coil Voltage	Mounting Type	Contact Rating (Current)	Operate Time
Phoenix Contact 2852353	10 ms	19 mA	250 VAC, 250 VDC	Plug In	1.26 kOhms	Silver Nickel (AgNi)	50 °C	-20 C	General Purpose	Lighted Indicator	GOST	Non Latching	DPST-NO (2 Form A)	24 VAC	Socketable	5 A	9 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 185.44

General part information

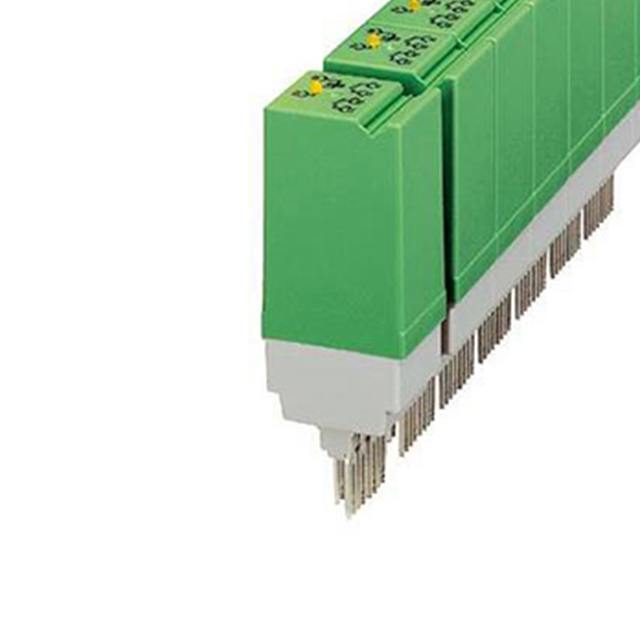

General Purpose Relay DPST-NO (2 Form A) 24VAC/DC Coil Socketable
