15182-7PG-331
ActiveConxall/Switchcraft

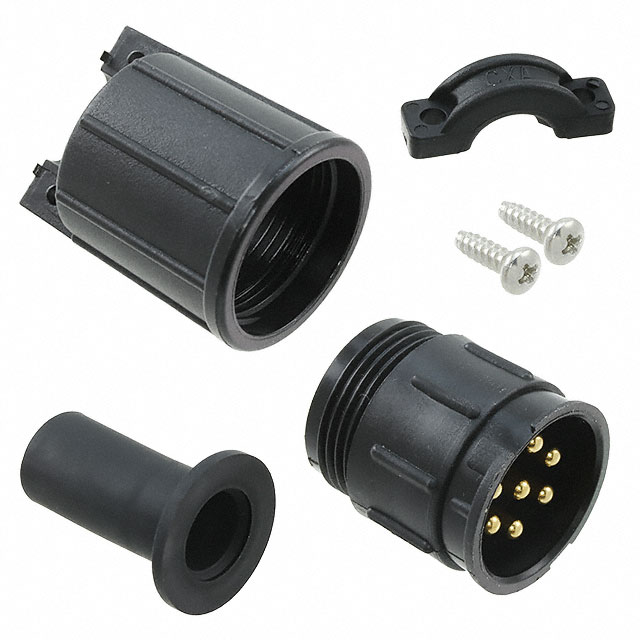

CONN RCPT MALE 7P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
15182-7PG-331
ActiveConxall/Switchcraft
CONN RCPT MALE 7P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 15182-7PG-331 | 15182-7PG Series |
|---|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 0.21 in |
| Cable Opening | - | 5.33 mm |
| Cable Opening | - | 6.35 mm |
| Cable Opening | - | 0.25 in |
| Cable Opening [diameter] | 9.65 mm | 9.65 mm |
| Cable Opening [diameter] | 0.31 in, 0.38 in | 0.31 - 0.38 in |
| Cable Opening [diameter] | 7.87 mm | 7.87 mm |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Backshell | Cable Clamp, Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 7 | 7 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
15182-7PG Series
CONN RCPT MALE 7P GOLD SLDR CUP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Number of Positions | Ingress Protection | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Color | Contact Finish - Mating | Voltage Rating | Features | Backshell Material, Plating | Orientation | Shielding | Connector Type | Contact Material | Fastening Type | Mounting Type | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 15182-7PG-331 | -40 °C | 115 °C | Plastic | 7 | Weathertight | 9.65 mm | 0.31 in, 0.38 in | 7.87 mm | Black | Gold | 600 V | Backshell, Cable Clamp | Nylon, Polyamide (PA) | Keyed | Unshielded | Male Pins, Receptacle | Brass | Bayonet Lock | Free Hanging (In-Line) | ||||
Conxall/Switchcraft 15182-7PG-321 | -40 °C | 115 °C | Plastic | 7 | Weathertight | Black | Gold | 600 V | Backshell, Cable Clamp | Nylon, Polyamide (PA) | Keyed | Unshielded | Male Pins, Receptacle | Brass | Bayonet Lock | Free Hanging (In-Line) | 0.21 in | 5.33 mm | 6.35 mm | 0.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 14.49 | |
Description
General part information
15182-7PG Series
7 Position Circular Connector Receptacle, Male Pins Solder Cup
