Description
General part information

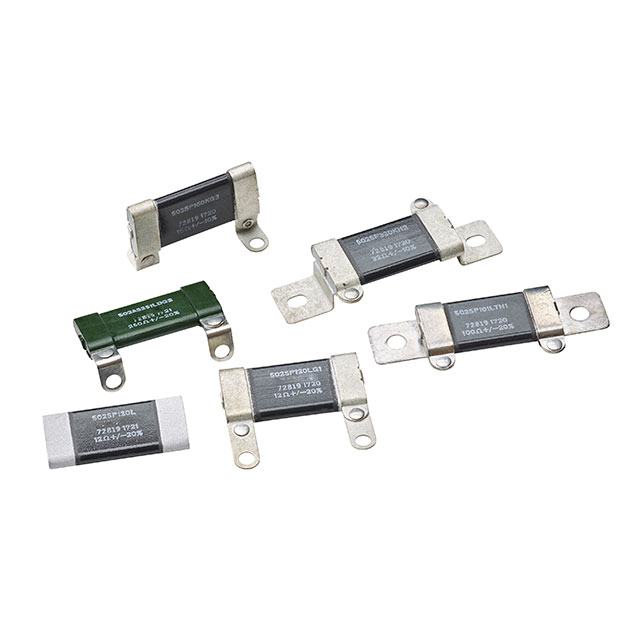

508BA104KDG2
100 kOhms ±10% 38W Ceramic Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | 508BA104KDG2 |
|---|---|
| Composition | Ceramic |
| Features | Pulse Withstanding, Non-Inductive, Moisture Resistant |
| Height - Seated (Max) | 1.5 in |
| Lead Style | Solder Lugs |
| Mounting Feature | Brackets (not included) |
| Operating Temperature (Max) | 230 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Flat Oval, Radial |
| Power (Watts) | 38 W |
| Resistance | 100 kOhm |
| Size / Dimension Length | 8 in |
| Size / Dimension Width | 0.252 in |
| Temperature Coefficient (Highest) | 0 ppm/°C |
| Temperature Coefficient (Lowest) | -2000 ppm/°C |
| Tolerance | 10 % |
