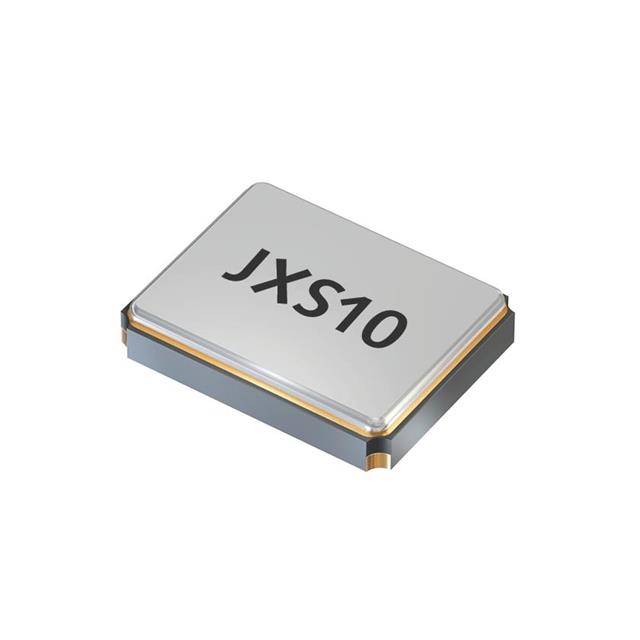

Q 80,0-JXS10-6-10/15-T1-FU-LF

Active

Jauch Quartz

CRYSTAL 80MHZ 6PF SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q 80,0-JXS10-6-10/15-T1-FU-LF	JXS10 Series

ESR (Equivalent Series Resistance)	60 Ohms	60 - 100 Ohms
Frequency	80 MHz	32 - 80 MHz
Frequency Stability	10 ppm	10 ppm
Frequency Tolerance	15 ppm	10 - 15 ppm
Load Capacitance	6 pF	6 - 8 pF
Mounting Type	Surface Mount	Surface Mount
Operating Mode	Fundamental	Fundamental
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - -20 C
Package / Case	4-SMD, No Lead	4-SMD, No Lead
Size / Dimension [x]	1.2 mm	1.2 mm
Size / Dimension [x]	0.047 in	0.047 in
Size / Dimension [y]	1 mm	1 mm
Size / Dimension [y]	0.039 "	0.039 "
Type	MHz Crystal	MHz Crystal

JXS10 Series

CRYSTAL 80MHZ 8PF SMD

Part	Load Capacitance	Frequency Stability	ESR (Equivalent Series Resistance)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Mounting Type	Operating Mode	Frequency	Frequency Tolerance
Jauch Quartz Q 80,0-JXS10-8-10/10-FU-LF	8 pF	10 ppm	60 Ohms	1.2 mm	1 mm	0.039 "	0.047 in	MHz Crystal	-20 C	70 °C	4-SMD, No Lead	Surface Mount	Fundamental	80 MHz	10 ppm
Jauch Quartz Q 32,0-JXS10-6-10/15-T1-FU-LF	6 pF	10 ppm	100 Ohms	1.2 mm	1 mm	0.039 "	0.047 in	MHz Crystal	-40 °C	85 °C	4-SMD, No Lead	Surface Mount	Fundamental	32 MHz	15 ppm
Jauch Quartz Q 32,0-JXS10-8-10/15-T1-FU-LF	8 pF	10 ppm	100 Ohms	1.2 mm	1 mm	0.039 "	0.047 in	MHz Crystal	-40 °C	85 °C	4-SMD, No Lead	Surface Mount	Fundamental	32 MHz	15 ppm
Jauch Quartz Q 40,0-JXS10-8-10/15-T1-FU-LF	8 pF	10 ppm	60 Ohms	1.2 mm	1 mm	0.039 "	0.047 in	MHz Crystal	-40 °C	85 °C	4-SMD, No Lead	Surface Mount	Fundamental	40 MHz	15 ppm
Jauch Quartz Q 32,0-JXS10-8-10/10-FU-LF	8 pF	10 ppm	100 Ohms	1.2 mm	1 mm	0.039 "	0.047 in	MHz Crystal	-20 C	70 °C	4-SMD, No Lead	Surface Mount	Fundamental	32 MHz	10 ppm
Jauch Quartz Q 40,0-JXS10-8-10/10-FU-LF	8 pF	10 ppm	60 Ohms	1.2 mm	1 mm	0.039 "	0.047 in	MHz Crystal	-20 C	70 °C	4-SMD, No Lead	Surface Mount	Fundamental	40 MHz	10 ppm
Jauch Quartz Q 40,0-JXS10-6-10/15-T1-FU-LF	6 pF	10 ppm	60 Ohms	1.2 mm	1 mm	0.039 "	0.047 in	MHz Crystal	-40 °C	85 °C	4-SMD, No Lead	Surface Mount	Fundamental	40 MHz	15 ppm
Jauch Quartz Q 80,0-JXS10-8-10/15-T1-FU-LF	8 pF	10 ppm	60 Ohms	1.2 mm	1 mm	0.039 "	0.047 in	MHz Crystal	-40 °C	85 °C	4-SMD, No Lead	Surface Mount	Fundamental	80 MHz	15 ppm
Jauch Quartz Q 38,40-JXS10-8-10/10-FU-LF	8 pF	10 ppm	60 Ohms	1.2 mm	1 mm	0.039 "	0.047 in	MHz Crystal	-20 C	70 °C	4-SMD, No Lead	Surface Mount	Fundamental	38.4 MHz	10 ppm
Jauch Quartz Q 37,40-JXS10-8-10/10-FU-LF	8 pF	10 ppm	60 Ohms	1.2 mm	1 mm	0.039 "	0.047 in	MHz Crystal	-20 C	70 °C	4-SMD, No Lead	Surface Mount	Fundamental	37.4 MHz	10 ppm
