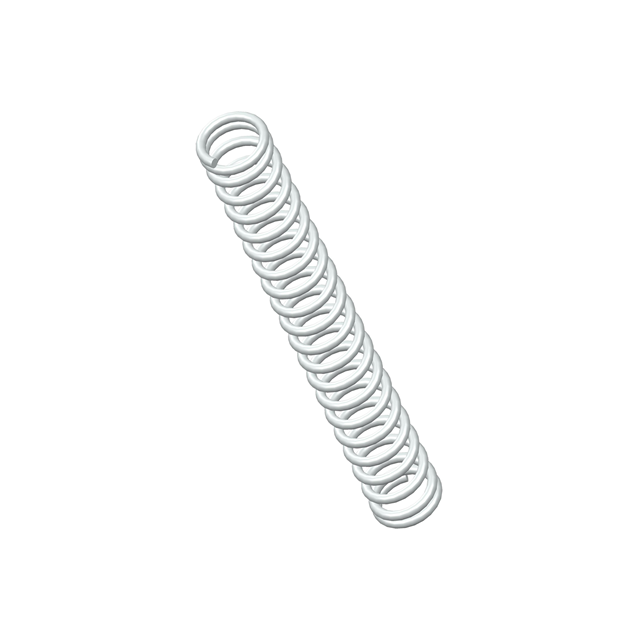

70056SCS
ActiveCentury Spring Corp
COMP O= .088,L= .69,W= .012
70056SCS
ActiveCentury Spring Corp
COMP O= .088,L= .69,W= .012
Description
General part information
70056SCS
COMP O= .088,L= .69,W= .012
Technical Specifications
Parameters and characteristics for this part
| Specification | 70056SCS |
|---|---|
| Diameter - Inside | 0.064 in |
| Diameter - Outside | 0.088 in |
| End Style | Closed |
| Finish | None |
| Free Length | 0.69 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 3 lbs/in |
| Type | Compression |
| Wire Diameter | 0.012 in |
