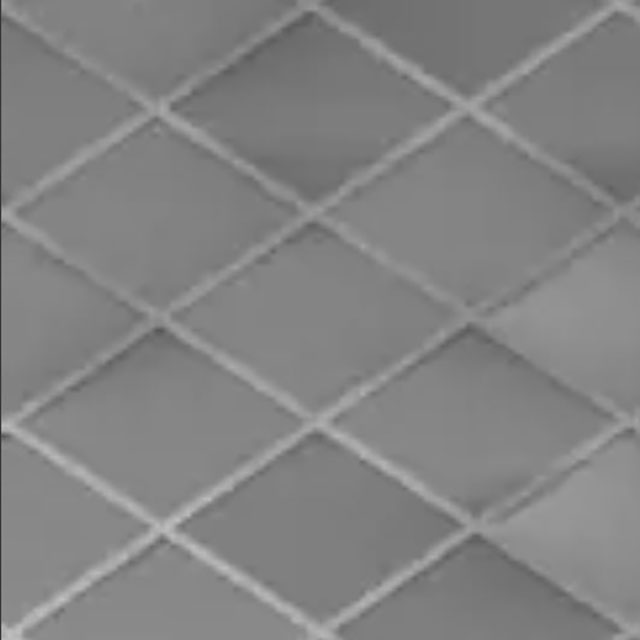

DK-M-100-1824

Active

Parker Chomerics

RF EMI SHIELDING MESH 24" X 18"

Search across all available documentation for this part.

Active

Parker Chomerics

RF EMI SHIELDING MESH 24" X 18"

Technical Specifications

Parameters and characteristics for this part

Specification	DK-M-100-1824

Length [x]	24 in
Length [x]	609.6 mm
Material	Stainless Steel Plated Blackened Copper
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Shape	Sheet
Thickness - Overall	0.03 mm
Thickness - Overall	0.001 in
Type	Shielding Mesh
Width [y]	457.2 mm
Width [y]	18 in

RF EMI SHIELDING MESH 24" X 18"

Part	Shape	Thickness - Overall	Thickness - Overall	Type	Width [y]	Width [y]	Material	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]
Parker Chomerics DK-M-100-1824	Sheet	0.03 mm	0.001 in	Shielding Mesh	457.2 mm	18 in	Stainless Steel Plated Blackened Copper	-40 °C	70 °C	24 in	609.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF EMI Shielding Mesh WIN-Shield™ Stainless Steel Plated Blackened Copper 18.000" (457.20mm) X 24.000" (609.60mm) X 0.001" (0.03mm)
