8-1377174-5
ActiveTE Connectivity AMP Connectors
SMP 9-0160481-1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8-1377174-5
ActiveTE Connectivity AMP Connectors
SMP 9-0160481-1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 8-1377174-5 | 1377174 Series |
|---|---|---|
| - | - | |
| Color | Red | Red, Yellow, Blue |
| Contact Finish | Tin | Tin, Nickel |
| Contact Material | Brass | Brass, Copper, Phosphor Bronze, Steel |
| Convert From (Adapter End) | - | 0.25 in |
| Convert From (Adapter End) | - | 0.25 in |
| Convert From (Adapter End) | - | Quick Connect, Male (2) |
| Convert From (Adapter End) | - | 6.35 mm |
| Convert To (Adapter End) | - | 6.35 mm |
| Convert To (Adapter End) | - | 0.25 in |
| Convert To (Adapter End) | - | Quick Connect, Male (2) |
| Convert To (Adapter End) | - | 0.25 in |
| Diameter - Barrel | - | 3.02 - 4.8 mm |
| Diameter - Barrel | - | 0.119 - 0.189 in |
| Features | - | Serrated Termination, 2 Tabs, Serrated Mating Area |
| Gender | Female | Female, Male |
| Insulation | Non-Mating End Insulated | Non-Mating End Insulated, Insulated, Non-Insulated, Fully Insulated |
| Insulation Diameter | - | 0.118 - 0.15 " |
| Insulation Diameter | - | 6.4 mm |
| Insulation Diameter | - | 3.81 mm |
| Insulation Diameter | - | 0.169 - 0.252 " |
| Insulation Diameter | - | 3.4 - 4.29 mm |
| Insulation Diameter | - | 0.134 - 0.169 in |
| Insulation Diameter | - | 2.11 mm |
| Insulation Diameter | - | 3 - 4.29 mm |
| Insulation Diameter [Max] [diameter] | 0.14 in | 0.083 - 4.32 in |
| Insulation Diameter [Max] [diameter] | 3.56 mm | 3.56 mm |
| Insulation Diameter [Min] [diameter] | 0.105 in | 0.043 - 2.92 in |
| Insulation Diameter [Min] [diameter] | 2.67 mm | 1.1 - 2.67 mm |
| Length - Barrel | - | 7.7 mm |
| Length - Barrel | - | 0.303 in |
| Length - Overall | - | 0.799 - 0.972 in |
| Length - Overall | - | 20.29 - 24.7 mm |
| Length - Overall [x] | 0.822 in | 0.78 - 1.299 in |
| Length - Overall [x] | 20.88 mm | 19.81 - 33 mm |
| Length - Pin | - | 6.71 - 9.91 mm |
| Length - Pin | - | 0.264 - 0.39 in |
| Length - Ring Center to Termination | - | 0.437 " |
| Length - Ring Center to Termination | - | 11.1 mm |
| Length - Termination | - | 13.6 - 15.39 mm |
| Length - Termination | - | 0.535 - 0.606 in |
| Length - Termination | - | 10.06 mm |
| Length - Termination | - | 0.396 in |
| Material - Insulation | - | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Board, Chassis |
| Number of Wire Entries | - | 2 |
| Pin Diameter | - | 0.031 " |
| Pin Diameter | - | 0.115 " |
| Pin Diameter | - | 0.8 mm |
| Pin Diameter | - | 2.92 mm |
| Stud/Tab Size | - | M6 Stud |
| Tab Length | 6.35 mm | 6.3 - 7.8 mm |
| Tab Length | 0.25 in | 0.248 - 7.9 in |
| Tab Length | - | 0.287 - 0.311 in |
| Tab Thickness | 0.02 " | 0.012 - 0.032 " |
| Tab Thickness | 0.51 mm | 0.3 - 0.81 mm |
| Tab Width | 4.75 mm | 2.79 - 6.35 mm |
| Tab Width | 0.187 in | 0.11 - 0.25 in |
| Terminal Type | Standard | Standard, Angled - 45°, Pin (Plug), Male, Butt Splice, Inline, Individual Openings, Female, Receptacle (Socket), Angled - 90° |
| Termination | Crimp | Crimp, Rivet, Screw, Stud |
| Tongue Inside Opening | - | 0.25 in |
| Tongue Inside Opening | - | 6.35 mm |
| Width - Outer Edges | - | 13.49 mm |
| Width - Outer Edges | - | 0.531 " |
| Wire Gauge | - | 1.0~2.6mm² |
| Wire Gauge [Max] | 22 AWG | 12 - 26 AWG |
| Wire Gauge [Min] | 16 AWG | 10 - 22 AWG |
1377174 Series
SMP 9-0160481-1
| Part | Contact Finish | Termination | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Color | Length - Overall [x] | Length - Overall [x] | Tab Length | Tab Length | Terminal Type | Gender | Contact Material | Tab Width | Tab Width | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Tab Thickness | Tab Thickness | Insulation | Width - Outer Edges [custom] | Width - Outer Edges [custom] | Tongue Inside Opening [x] | Tongue Inside Opening [x] | Material - Insulation | Features | Length - Ring Center to Termination [x] | Length - Ring Center to Termination [x] | Stud/Tab Size | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Length - Termination | Length - Termination | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Insulation Diameter [Max] [diameter] | Tab Length | Insulation Diameter | Length - Barrel [x] | Length - Barrel [x] | Diameter - Barrel [diameter] | Diameter - Barrel [diameter] | Convert From (Adapter End) | Convert From (Adapter End) | Convert From (Adapter End) | Convert From (Adapter End) | Convert To (Adapter End) | Convert To (Adapter End) | Convert To (Adapter End) | Convert To (Adapter End) | Length - Overall | Length - Overall | Length - Pin [x] | Length - Pin [x] | Number of Wire Entries | Pin Diameter [custom] | Pin Diameter [custom] | Pin Diameter [custom] | Pin Diameter [custom] | Length - Termination [x] | Length - Termination [x] | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 8-1377174-5 | Tin | Crimp | 0.14 in | 0.105 in | 3.56 mm | 2.67 mm | Red | 0.822 in | 20.88 mm | 6.35 mm | 0.25 in | Standard | Female | Brass | 4.75 mm | 0.187 in | Free Hanging (In-Line) | 22 AWG | 16 AWG | 0.02 " | 0.51 mm | Non-Mating End Insulated | ||||||||||||||||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors 1377174-6 | Tin | Crimp | Yellow | 1.299 in | 33 mm | Standard | Copper | Free Hanging (In-Line) | 12 AWG | 10 AWG | Insulated | 13.49 mm | 0.531 " | 0.25 in | 6.35 mm | Nylon, Polyamide (PA) | Serrated Termination | 0.437 " | 11.1 mm | M6 Stud | 0.15 " | 6.4 mm | 3.81 mm | 0.252 " | 15.39 mm | 0.606 in | ||||||||||||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors 9-1377174-5 | Tin | Crimp | Blue | 0.78 in | 19.81 mm | 6.35 mm | 0.25 in | Standard | Female | Brass | 2.79 mm | 0.11 " | Free Hanging (In-Line) | 16 AWG | 14 AWG | 0.02 " | 0.51 mm | Non-Mating End Insulated | 4.29 mm | 0.169 in | ||||||||||||||||||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors 6-1377174-2 | Rivet, Screw, Stud | 7.8 mm | 0.307 in | Angled - 45° | Male | Brass | 6.35 mm | 0.25 in | Board, Chassis | 0.032 in | 0.81 mm | Non-Insulated | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors 7-1377174-7 | Tin | Crimp | 0.083 in | 0.043 in | 1.1 mm | Yellow | 6.3 mm | 0.248 in | Standard | Female | Brass | 2.79 mm | 0.11 " | Free Hanging (In-Line) | 26 AWG | 22 AWG | 0.032 in | 0.81 mm | Non-Mating End Insulated | 2.11 mm | ||||||||||||||||||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors 5-1377174-1 | Rivet, Screw, Stud | 7.9 mm | Angled - 45° | Male | Brass | 6.35 mm | 0.25 in | Board, Chassis | 0.032 in | 0.81 mm | Non-Insulated | 0.311 in | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors 4-1377174-7 | Tin | Crimp | 0.795 in | 20.19 mm | 7.7 mm | Standard | Female | Phosphor Bronze | 6.35 mm | 0.25 in | Free Hanging (In-Line) | 17 AWG | 14 AWG | 0.032 in | 0.81 mm | Non-Insulated | 0.118 in | 0.169 in | 0.303 in | 3 mm, 4.29 mm | ||||||||||||||||||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors 5-1377174-6 | Rivet, Screw, Stud | 7.3 mm | Angled - 45° | Male | Brass | 6.35 mm | 0.25 in | Board, Chassis | 0.032 in | 0.81 mm | Non-Insulated | 2 Tabs | 0.287 in | |||||||||||||||||||||||||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors 2-1377174-4 | Tin | Crimp | Red | 0.945 in | 24 mm | Male, Pin (Plug) | Brass | 20 AWG | 15 AWG | Fully Insulated | Nylon, Polyamide (PA) | 3.4 mm | 0.134 in | 7.7 mm | 0.303 in | 3.02 mm | 0.119 in | |||||||||||||||||||||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors 6-1377174-7 | Insulated | 0.25 in | 0.25 in | Quick Connect, Male (2) | 6.35 mm | 6.35 mm | 0.25 in | Quick Connect, Male (2) | 0.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.94 | |
| 10 | $ 0.78 | |||
| 25 | $ 0.72 | |||
| 50 | $ 0.68 | |||
| 100 | $ 0.65 | |||
| 250 | $ 0.60 | |||
| 500 | $ 0.57 | |||
| 1000 | $ 0.54 | |||
| 2500 | $ 0.50 | |||
Description
General part information
1377174 Series

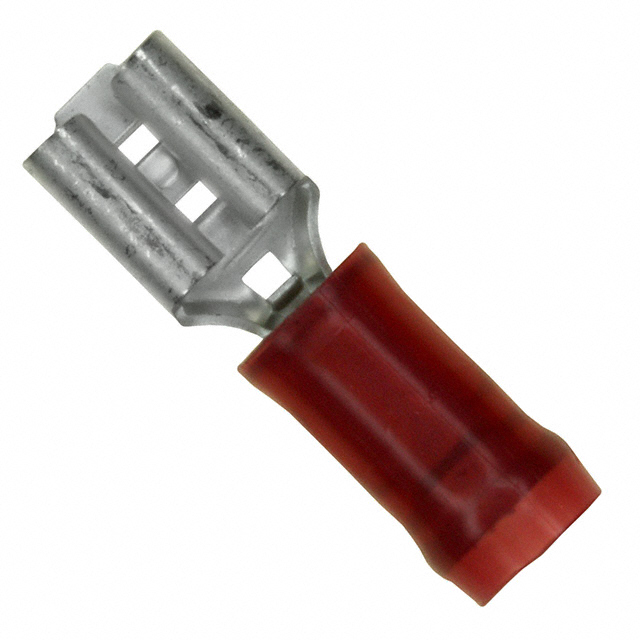

0.187" (4.75mm) Quick Connect Female 16-22 AWG Crimp Connector Non-Mating End Insulated
