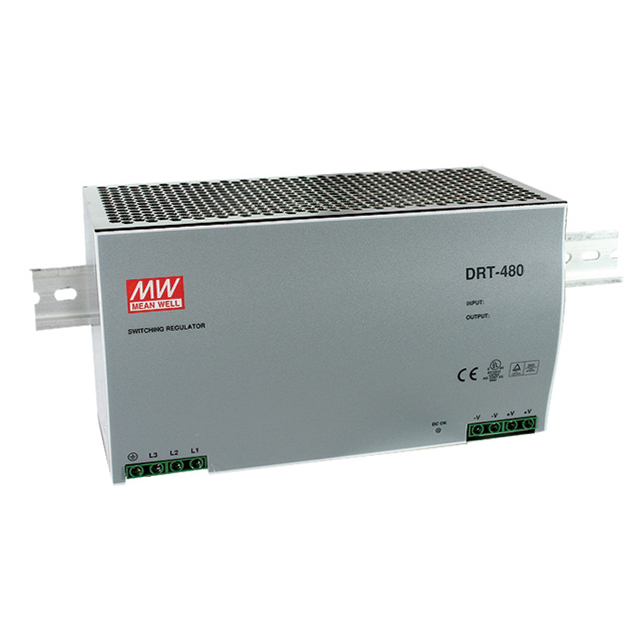

DRT-480-24
ObsoleteMEAN WELL USA Inc.
AC/DC DIN RAIL SUPPLY 24V 480W
DRT-480-24
ObsoleteMEAN WELL USA Inc.
AC/DC DIN RAIL SUPPLY 24V 480W
Description
General part information
DRT-480-24
AC/DC DIN RAIL SUPPLY 24V 480W
Technical Specifications
Parameters and characteristics for this part
| Specification | DRT-480-24 |
|---|---|
| AC Voltage - Input (Max) | 550 VAC |
| AC Voltage - Input (Min) | 340 VAC |
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | CE, CB, cURus, TUV, cULus |
| Current - Output (Max) | 20 A |
| DC Voltage - Input (Max) | 780 V |
| DC Voltage - Input (Min) | 480 V |
| Efficiency | 89 % |
| Features | Adjustable Output |
| Input Type | AC or DC, DC, AC |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 480 W |
| Size / Dimension Height | 4.93 in |
| Size / Dimension Length | 3.94 in |
| Size / Dimension Width | 8.94 in |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 24 V |
