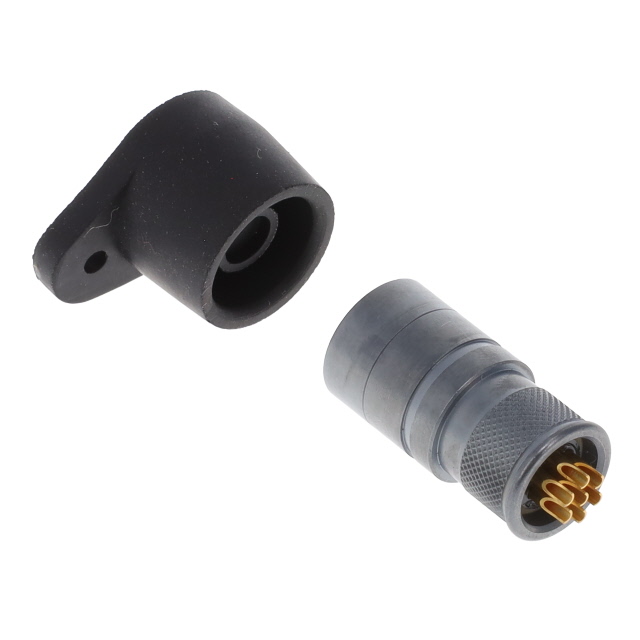

SCE2-B-01K06-07PN
ActiveAmphenol
CONN RCPT MALE 7P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SCE2-B-01K06-07PN
ActiveAmphenol
CONN RCPT MALE 7P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SCE2-B-01K06-07PN | SCE2-B Series |
|---|---|---|
| Backshell Material, Plating | Brass, Black Silver | Brass, Black Silver |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins, Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 1 µm | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin | 39.4 µin |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 3 A, 1.5 A, 7.5 A | 1.5 - 7.5 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Backshell | Coupling Nut, Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Mounting Feature | - | Bulkhead - Front Side Nut |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Through Hole, Panel Mount |
| Number of Positions | 7 | 7 - 37 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Shell Finish | Black | Black |
| Shell Material | Brass | Brass |
| Shell Size - Insert | - | 10-37, 7-A10 |
| Shell Size - Insert [Max] | 7 | 7 - 26 |
| Shell Size - Insert [Min] | 6 | 6 - 9 |
| Shielding | Unshielded | Unshielded |
| Termination | - | Solder |
| Voltage Rating | 400 VAC | 400 VAC |
SCE2-B Series
CONN RCPT MALE 14P GOLD SLDR CUP
| Part | Shell Material | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Number of Positions | Primary Material | Ingress Protection | Current Rating (Amps) | Contact Material | Fastening Type | Features | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Color | Shell Finish | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Orientation | Backshell Material, Plating | Shielding | Voltage Rating | Contact Finish - Mating | Mounting Type | Mounting Feature | Termination | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol SCE2-B-L1K07-14PN | Brass | -55 °C | 125 °C | Male Pins, Receptacle | 14 | Metal | IP68 - Dust Tight, Waterproof | 1.5 A, 3 A, 7.5 A | Copper Alloy | Push-Pull | Backshell, Coupling Nut | 7 | 14 | Black | Black | 1 µm | 39.4 µin | N | Black Silver, Brass | Unshielded | 400 VAC | Gold | Free Hanging (In-Line) | |||
Amphenol SCE2-B-76A10-37SN-001 | Brass | -55 °C | 125 °C | Female Sockets, Plug | 37 | Metal | IP68 - Dust Tight, Waterproof | 1.5 A, 3 A, 7.5 A | Copper Alloy | Push-Pull | Black | Black | 1 µm | 39.4 µin | N | Unshielded | 400 VAC | Gold | Panel Mount, Through Hole | Bulkhead - Front Side Nut | Solder | 10-37 | ||||
Amphenol SCE2-B-01K06-07PN | Brass | -55 °C | 125 °C | Male Pins, Receptacle | 7 | Metal | IP68 - Dust Tight, Waterproof | 1.5 A, 3 A, 7.5 A | Copper Alloy | Push-Pull | Backshell | 6 | 7 | Black | Black | 1 µm | 39.4 µin | N | Black Silver, Brass | Unshielded | 400 VAC | Gold | Free Hanging (In-Line) | |||
Amphenol SCE2-B-76A09-26SN-001 | Brass | -55 °C | 125 °C | Female Sockets, Plug | 26 | Metal | IP68 - Dust Tight, Waterproof | 1.5 A, 3 A, 7.5 A | Copper Alloy | Push-Pull | 9 | 26 | Black | Black | 1 µm | 39.4 µin | N | Unshielded | 400 VAC | Gold | Panel Mount, Through Hole | Bulkhead - Front Side Nut | Solder | |||
Amphenol SCE2-B-L1K10-37PN | Brass | -55 °C | 125 °C | Male Pins, Receptacle | 37 | Metal | IP68 - Dust Tight, Waterproof | 1.5 A, 3 A, 7.5 A | Copper Alloy | Push-Pull | Backshell, Coupling Nut | Black | Black | 1 µm | 39.4 µin | N | Black Silver, Brass | Unshielded | 400 VAC | Gold | Free Hanging (In-Line) | 10-37 | ||||
Amphenol SCE2-B-L1K06-07PN | Brass | -55 °C | 125 °C | Male Pins, Receptacle | 7 | Metal | IP68 - Dust Tight, Waterproof | 1.5 A, 3 A, 7.5 A | Copper Alloy | Push-Pull | Backshell, Coupling Nut | 6 | 7 | Black | Black | 1 µm | 39.4 µin | N | Black Silver, Brass | Unshielded | 400 VAC | Gold | Free Hanging (In-Line) | |||
Amphenol SCE2-B-76A07-10ASN-002 | Brass | -55 °C | 125 °C | Female Sockets, Plug | 10 | Metal | IP68 - Dust Tight, Waterproof | 1.5 A, 3 A, 7.5 A | Copper Alloy | Push-Pull | Black | Black | 1 µm | 39.4 µin | N | Unshielded | 400 VAC | Gold | Bulkhead - Front Side Nut | 7-A10 | ||||||
Amphenol SCE2-B-06K07-14SN | Brass | -55 °C | 125 °C | Female Sockets, Plug | 14 | Metal | IP68 - Dust Tight, Waterproof | 1.5 A, 3 A, 7.5 A | Copper Alloy | Push-Pull | Backshell | 7 | 14 | Black | Black | 1 µm | 39.4 µin | N | Black Silver, Brass | Unshielded | 400 VAC | Gold | Free Hanging (In-Line) | |||
Amphenol SCE2-B-76A07-14SN-002 | Brass | -55 °C | 125 °C | Female Sockets, Plug | 14 | Metal | IP68 - Dust Tight, Waterproof | 1.5 A, 3 A, 7.5 A | Copper Alloy | Push-Pull | 7 | 14 | Black | Black | 1 µm | 39.4 µin | N | Unshielded | 400 VAC | Gold | Bulkhead - Front Side Nut | |||||
Amphenol SCE2-B-76A08-19SN-002 | Brass | -55 °C | 125 °C | Female Sockets, Plug | 19 | Metal | IP68 - Dust Tight, Waterproof | 1.5 A, 3 A, 7.5 A | Copper Alloy | Push-Pull | 8 | 19 | Black | Black | 1 µm | 39.4 µin | N | Unshielded | 400 VAC | Gold | Bulkhead - Front Side Nut |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 80.94 | |
Description
General part information
SCE2-B Series
7 Position Circular Connector Receptacle, Male Pins Solder Cup
