Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | B-434-1 | B-434 Series |
|---|---|---|
| Diameter - Inside | 0.5 in | 0.5 in |
| Diameter - Inside | 12.7 mm | 12.7 mm |
| Diameter - Inside [diameter] | 0.5 in | 0.5 in |
| Diameter - Outside [diameter] | 0.813 " | 0.813 " |
| Diameter - Outside [diameter] | 20.65 mm | 20.65 mm |
| Length - Below Head [x] | 7.95 mm | 7.95 mm |
| Length - Below Head [x] | 0.313 in | 0.313 in |
| Material | Thermoplastic | Thermoplastic |
| Thickness - Overall | 14.3 mm | 14.3 mm |
| Thickness - Overall [custom] | 0.563 in | 0.563 in |
B-434 Series

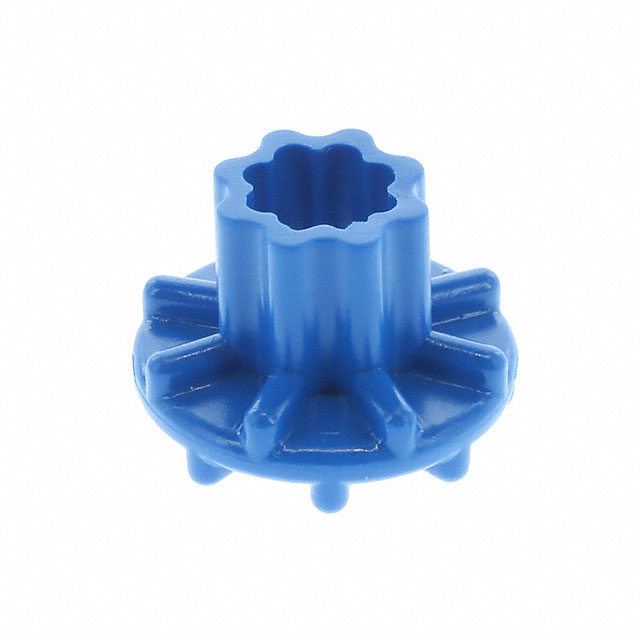

BUSHING 1/2" THERMOPLASTIC
| Part | Diameter - Inside [diameter] | Diameter - Inside | Diameter - Inside | Material | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Thickness - Overall | Thickness - Overall [custom] | Length - Below Head [x] | Length - Below Head [x] |
|---|---|---|---|---|---|---|---|---|---|---|
Aearo Technologies LLC, a 3M company B-434-V2325 | 0.5 in | 0.5 in | 12.7 mm | Thermoplastic | 0.813 " | 20.65 mm | 14.3 mm | 0.563 in | 7.95 mm | 0.313 in |
Aearo Technologies LLC, a 3M company B-434-V2750 | 0.5 in | 0.5 in | 12.7 mm | Thermoplastic | 0.813 " | 20.65 mm | 14.3 mm | 0.563 in | 7.95 mm | 0.313 in |
Aearo Technologies LLC, a 3M company B-434-1 | 0.5 in | 0.5 in | 12.7 mm | Thermoplastic | 0.813 " | 20.65 mm | 14.3 mm | 0.563 in | 7.95 mm | 0.313 in |
Aearo Technologies LLC, a 3M company B-434-V2575 | 0.5 in | 0.5 in | 12.7 mm | Thermoplastic | 0.813 " | 20.65 mm | 14.3 mm | 0.563 in | 7.95 mm | 0.313 in |
Aearo Technologies LLC, a 3M company B-434-V2525 | 0.5 in | 0.5 in | 12.7 mm | Thermoplastic | 0.813 " | 20.65 mm | 14.3 mm | 0.563 in | 7.95 mm | 0.313 in |
Aearo Technologies LLC, a 3M company B-434-V2590 | 0.5 in | 0.5 in | 12.7 mm | Thermoplastic | 0.813 " | 20.65 mm | 14.3 mm | 0.563 in | 7.95 mm | 0.313 in |
Aearo Technologies LLC, a 3M company B-434-V2599 | 0.5 in | 0.5 in | 12.7 mm | Thermoplastic | 0.813 " | 20.65 mm | 14.3 mm | 0.563 in | 7.95 mm | 0.313 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.34 | |
| 10 | $ 1.08 | |||
| 25 | $ 1.01 | |||
| 50 | $ 0.97 | |||
| 100 | $ 0.92 | |||
| 250 | $ 0.88 | |||
| 500 | $ 0.84 | |||
| 1000 | $ 0.82 | |||
Description
General part information
B-434 Series
Shoulder Washer 0.563" (14.30mm) Thick Thermoplastic
