EGG.0T.309.CLL
ActiveLEMO

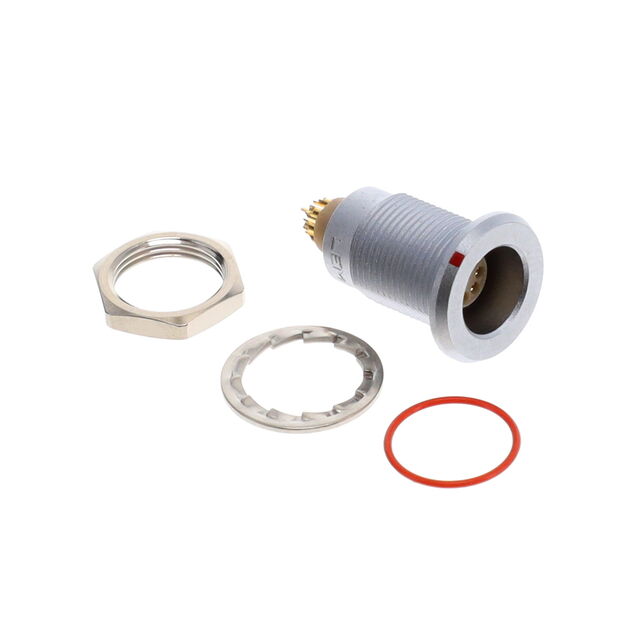

CONN RCPT FMALE 9P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EGG.0T.309.CLL
ActiveLEMO
CONN RCPT FMALE 9P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EGG.0T.309.CLL | EGG.0T Series |
|---|---|---|
| Color | Silver | Black, Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 2 A | 2 - 10 A |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Positions | 9 | 2 - 9 |
| Operating Temperature [Max] | 200 °C | 200 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 309 | 302 - 309 |
| Shielding | Shielded | Shielded |
EGG.0T Series
CONN RCPT FMALE 9P GOLD SLDR CUP
| Part | Mounting Feature | Fastening Type | Number of Positions | Orientation | Contact Finish - Mating | Primary Material | Color | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Size - Insert | Current Rating (Amps) | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Insert Material | Shell Material | Shielding | Connector Type | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO EGG.0T.309.KLL | Bulkhead - Rear Side Nut | Push-Pull | 9 | G | Gold | Metal | Black | Bronze | 1.5 Ám | 59 Áin | 309 | 2 A | UL94 V-0 | 200 °C | -55 °C | IP66/IP68 | Polyetheretherketone (PEEK) | Brass | Shielded | Receptacle, Female Sockets | |
LEMO EGG.0T.307.CLL | Bulkhead - Rear Side Nut | Push-Pull | 7 | G | Gold | Metal | Silver | Bronze | 1.5 Ám | 59 Áin | 307 | 2.5 A | UL94 V-0 | 200 °C | -55 °C | IP66/IP68 | Polyetheretherketone (PEEK) | Brass | Shielded | Receptacle, Female Sockets | Chrome |
LEMO EGG.0T.305.KLL | Bulkhead - Rear Side Nut | Push-Pull | G | Gold | Metal | Black | Bronze | 1.5 Ám | 59 Áin | 305 | 6.5 A | UL94 V-0 | 200 °C | -55 °C | IP66/IP68 | Polyetheretherketone (PEEK) | Brass | Shielded | Receptacle, Female Sockets | ||
LEMO EGG.0T.309.CLL | Bulkhead - Rear Side Nut | Push-Pull | 9 | G | Gold | Metal | Silver | Bronze | 1.5 Ám | 59 Áin | 309 | 2 A | UL94 V-0 | 200 °C | -55 °C | IP66/IP68 | Polyetheretherketone (PEEK) | Brass | Shielded | Receptacle, Female Sockets | Chrome |
LEMO EGG.0T.307.KLL | Bulkhead - Rear Side Nut | Push-Pull | 7 | G | Gold | Metal | Black | Bronze | 1.5 Ám | 59 Áin | 307 | 2.5 A | UL94 V-0 | 200 °C | -55 °C | IP66/IP68 | Polyetheretherketone (PEEK) | Brass | Shielded | Receptacle, Female Sockets | |
LEMO EGG.0T.305.CLL | Bulkhead - Rear Side Nut | Push-Pull | G | Gold | Metal | Silver | Bronze | 1.5 Ám | 59 Áin | 305 | 6.5 A | UL94 V-0 | 200 °C | -55 °C | IP66/IP68 | Polyetheretherketone (PEEK) | Brass | Shielded | Receptacle, Female Sockets | Chrome | |
LEMO EGG.0T.302.CLL | Bulkhead - Rear Side Nut | Push-Pull | 2 | G | Gold | Metal | Silver | Bronze | 1.5 Ám | 59 Áin | 302 | 10 A | UL94 V-0 | 200 °C | -55 °C | IP66/IP68 | Polyetheretherketone (PEEK) | Brass | Shielded | Receptacle, Female Sockets | Chrome |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 33.63 | |
| 10 | $ 29.45 | |||
| 25 | $ 28.18 | |||
| 50 | $ 27.27 | |||
| 100 | $ 26.36 | |||
| 250 | $ 24.91 | |||
Description
General part information
EGG.0T Series
9 Position Circular Connector Receptacle, Female Sockets Solder Cup
