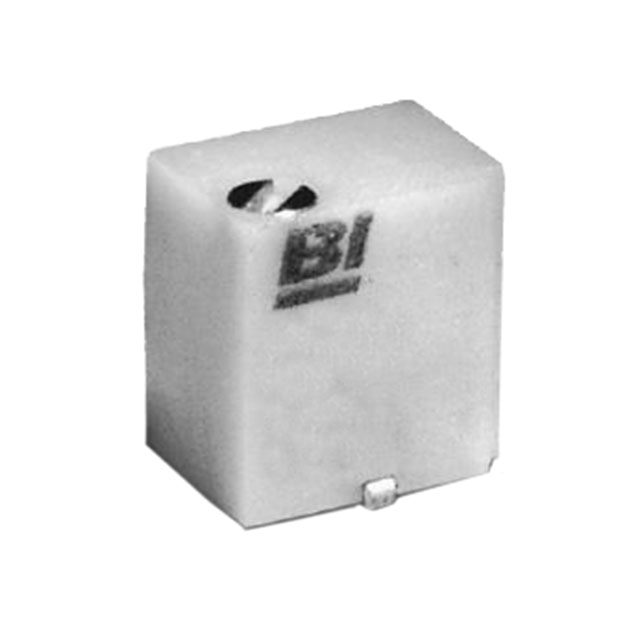

44WR100KLFTB

Active

TT Electronics/BI

TRIMMER 100KOHM 0.25W J LEAD TOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

44WR100KLFTB

Active

TT Electronics/BI

TRIMMER 100KOHM 0.25W J LEAD TOP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.94
		10	$ 3.61
		25	$ 3.22
		50	$ 3.02
		100	$ 2.76
		300	$ 2.31

Description

General part information

44WR Series

100 kOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 9.0 Turn Top Adjustment

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	44WR100KLFTB	44WR Series

Adjustment Type	Top Adjustment	Top Adjustment
Mounting Type	Surface Mount	Surface Mount
Number of Turns	9	9
Power (Watts)	0.25 W	0.25 W
Power (Watts)	250 mW	250 mW
Resistance	100 kOhms	1 - 200000 MOhms
Resistive Material	Cermet	Cermet
Size / Dimension	Rectangular - Face	Rectangular - Face
Size / Dimension	-	0.154 in
Size / Dimension	-	0.19 "
Size / Dimension [x]	4.83 mm	4.83 mm
Size / Dimension [x]	0.19 "	0.19 "
Size / Dimension [y]	0.138 "	0.138 "
Size / Dimension [y]	3.51 mm	3.51 - 3.91 mm
Temperature Coefficient	100 ppm/°C	100 - 250 ppm/°C
Termination Style	J Lead	J Lead
Tolerance	10 %	10 - 20 %

44WR Series

TRIMMER 1M OHM 0.25W J LEAD TOP

Part	Temperature Coefficient	Power (Watts)	Power (Watts)	Termination Style	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Resistive Material	Mounting Type	Number of Turns	Resistance	Tolerance	Adjustment Type	Size / Dimension	Size / Dimension [y]	Size / Dimension [x]
TT Electronics/BI 44WR1MEGLFT13	100 ppm/°C	0.25 W	250 mW	J Lead	0.154 in	0.19 "	4.83 mm	3.91 mm	Cermet	Surface Mount	9	1 MOhms	10 %	Top Adjustment
TT Electronics/BI 44WR10KLFT13	100 ppm/°C	0.25 W	250 mW	J Lead	0.154 in	0.19 "	4.83 mm	3.91 mm	Cermet	Surface Mount	9	10000 Ohms	10 %	Top Adjustment
TT Electronics/BI 44WR25KLFT7	100 ppm/°C	0.25 W	250 mW	J Lead	0.154 in	0.19 "	4.83 mm	3.91 mm	Cermet	Surface Mount	9	25 kOhms	10 %	Top Adjustment
TT Electronics/BI 44WR200KLFTB	100 ppm/°C	0.25 W	250 mW	J Lead	0.154 in	0.19 "	4.83 mm	3.91 mm	Cermet	Surface Mount	9	200000 Ohms	10 %	Top Adjustment
TT Electronics/BI 44WR1KLFTB	100 ppm/°C	0.25 W	250 mW	J Lead			4.83 mm	3.51 mm	Cermet	Surface Mount	9	1000 Ohms	10 %	Top Adjustment	Rectangular - Face	0.138 "	0.19 "
TT Electronics/BI 44WR2MEGLFT7	100 ppm/°C	0.25 W	250 mW	J Lead	0.154 in	0.19 "	4.83 mm	3.91 mm	Cermet	Surface Mount	9	2 MOhms	10 %	Top Adjustment
TT Electronics/BI 44WR1KLFT7	100 ppm/°C	0.25 W	250 mW	J Lead			4.83 mm	3.51 mm	Cermet	Surface Mount	9	1000 Ohms	10 %	Top Adjustment	Rectangular - Face	0.138 "	0.19 "
TT Electronics/BI 44WR50LFTB	250 ppm/°C	0.25 W	250 mW	J Lead	0.154 in	0.19 "	4.83 mm	3.91 mm	Cermet	Surface Mount	9	50 Ohms	20 %	Top Adjustment
TT Electronics/BI 44WR500LFT7	100 ppm/°C	0.25 W	250 mW	J Lead			4.83 mm	3.51 mm	Cermet	Surface Mount	9	500 Ohms	10 %	Top Adjustment	Rectangular - Face	0.138 "	0.19 "
TT Electronics/BI 44WR100LFT7	100 ppm/°C	0.25 W	250 mW	J Lead			4.83 mm	3.51 mm	Cermet	Surface Mount	9	100 Ohms	10 %	Top Adjustment	Rectangular - Face	0.138 "	0.19 "
