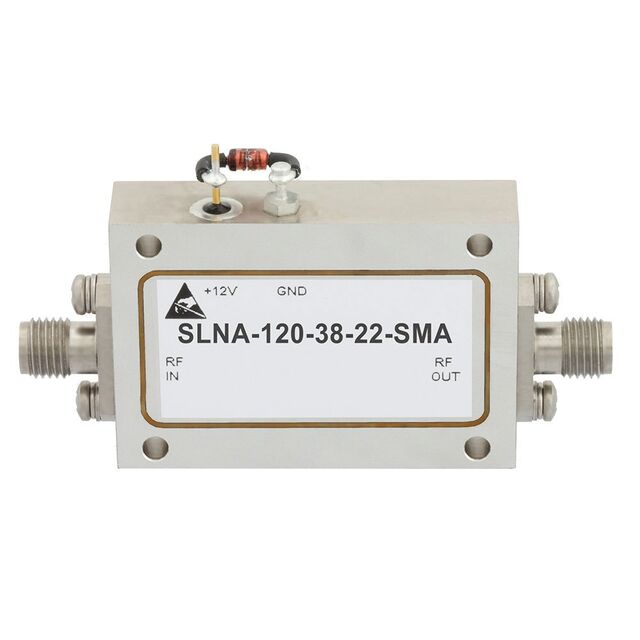

SLNA-120-38-22-SMA
ActiveFairview Microwave
LOWNOISEAMP 8000MHZ-12GHZ SMA
SLNA-120-38-22-SMA
ActiveFairview Microwave
LOWNOISEAMP 8000MHZ-12GHZ SMA
Description
General part information
SLNA-120-38-22-SMA
RF Amplifier IC General Purpose 8GHz ~ 12GHz Module
Technical Specifications
Parameters and characteristics for this part
| Specification | SLNA-120-38-22-SMA |
|---|---|
| Current - Supply | 250 mA |
| Frequency (Max) | 12 GHz |
| Frequency (Min) | 8 GHz |
| Gain | 38 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 2.2 dB |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| RF Type | General Purpose |
| Voltage - Supply (Maximum) | 13 V |
| Voltage - Supply (Minimum) | 11 VDC |
