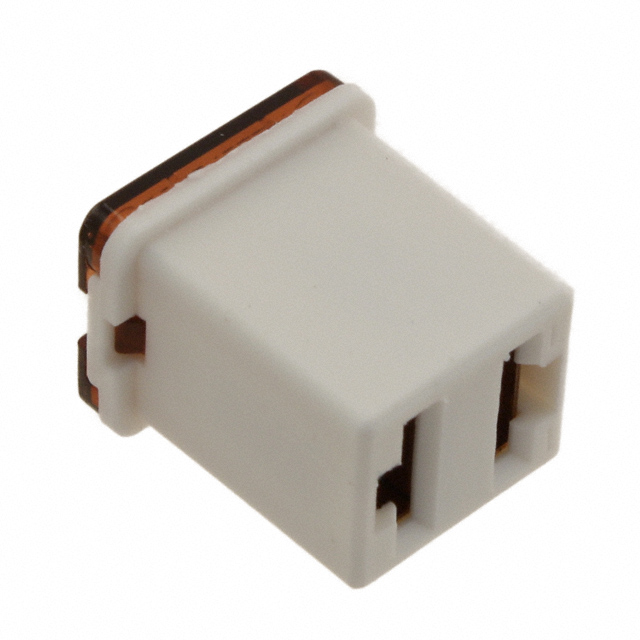

0895025.U
ActiveLITTELFUSE
FUSE - LP JCASE 58VDC 25A 500 PC/ BULK ROHS COMPLIANT: YES
0895025.U
ActiveLITTELFUSE
FUSE - LP JCASE 58VDC 25A 500 PC/ BULK ROHS COMPLIANT: YES
Description
General part information
0895025.U
25 A AC 58 V DC Fuse Automotive Requires Holder Auto Link
Technical Specifications
Parameters and characteristics for this part
| Specification | 0895025.U |
|---|---|
| Breaking Capacity | 1 kA |
| Color | Clear |
| Current Rating | 25 A |
| DC Cold Resistance | 0.00339 Ohms |
| Fuse Type | Automotive |
| Melting I²t | 680 |
| Mounting Type | Requires Holder |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Auto Link |
| Size / Dimension Height | 0.63 in |
| Size / Dimension Length | 0.571 in |
| Size / Dimension Width | 0.472 in |
| Voltage Rating - DC | 58 VDC |
