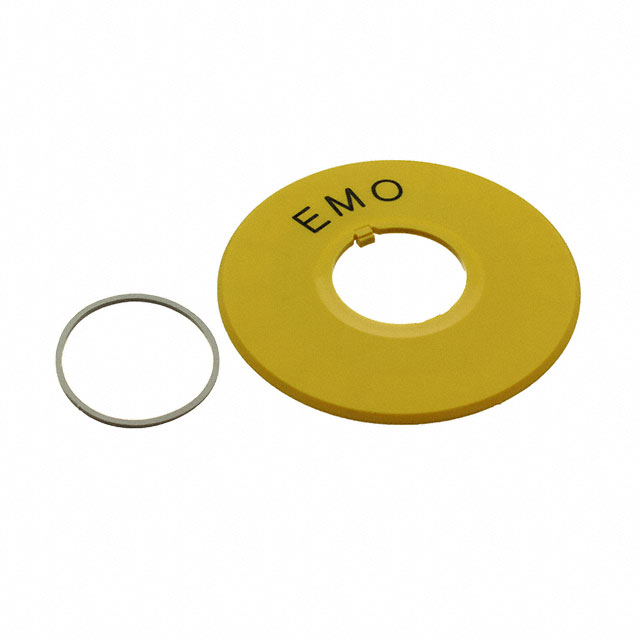

| Accessory Type | Emergency Stop Plate | Legend Plate, Emergency Stop Plate, Legend Plate Insert, Operator, Gasket |
| Actuator Type | - | Joystick, Flush, Button, Round, Mushroom, Rectangular, Rectangular, Button, Selector, Pushbutton, Square |
| Approval Agency | - | TUV, CSA, CCC, CE, UL |
| Circuit | - | 4PST-NO, 4PST-2NO/2NC, SPST-NO, SPST-NC, DPST-NC, DPST-NO/NC, DPST-NO, 4PST-NC |
| Color - Actuator/Cap | - | Green, Blue, Red, Amber, White, Black, Yellow |
| Contact Finish | - | Gold |
| Contact Material | - | Silver (Ag) |
| Current Rating (Amps) | - | 10 A |
| Depth Behind Flange | - | 49.4 - 89.4 mm |
| Depth Behind Flange | - | 69.4 - 70 mm |
| For Use With/Related Products | HW Series | HW Series, Pilot Light |
| Illumination | - | Illuminated, Non-Illuminated |
| Illumination Type, Color | - | LED, Yellow, Green, Blue, Amber, Red, White |
| Illumination Voltage (Nominal) | - | 6 - 480 VAC |
| Illumination Voltage (Nominal) | - | 100 VAC/DC |
| Illumination Voltage (Nominal) | - | 120 VAC/DC |
| Ingress Protection | - | IP65 - Dust Tight, Water Resistant, IP65, IP20, IP40 |
| Lens Color | - | Yellow |
| Lens Size | - | 22 mm |
| Mechanical Life | - | 500000 - 5000000 Cycles |
| Mounting Type | - | Panel Mount, Front |
| Number of Positions | - | 2 |
| Operating Temperature | - | 50 - 60 °C |
| Operating Temperature | - | -25 °C |
| Output | - | Digital (Mechanical Switch) |
| Panel Cutout Dimensions | - | 22.3 mm |
| Panel Cutout Dimensions | - | 22.3 mm |
| Panel Cutout Shape | - | Round |
| Ratings | - | AC/DC |
| Requires | - | Contact Block(s) |
| Switch Function | - | Mom-Off-Mom, Off-On-On, Off-Off-On, On-On-Off, On-Off-Off, Off-Mom, 4-Way Directional, On-Off, Off-On, On-Mom, Mom-On-Mom, Off-Off-Mom, Off-On-Mom |
| Termination Style | - | Screw Terminal |
| Type | - | Standard, Joystick, 2 - Axis, LED, Illuminated, Maintained, Momentary |
| Voltage | - | 12 V |
| Voltage Rating - AC | - | 110 V |
| Voltage Rating - DC | - | 24 V |
