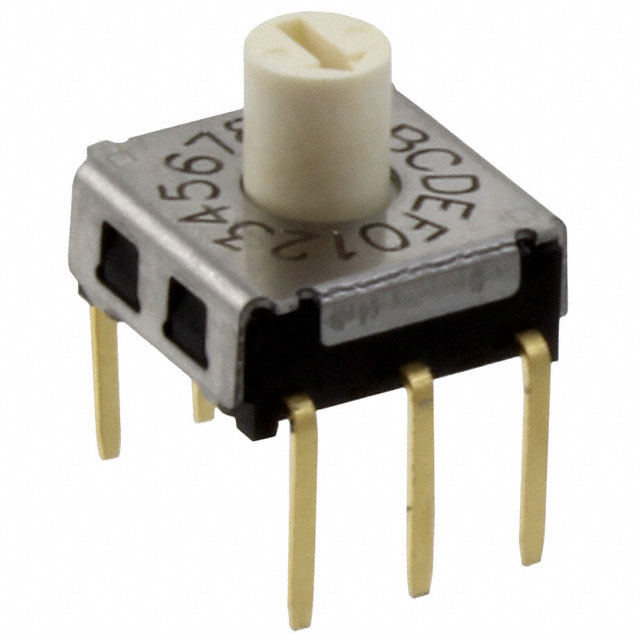

A6K-162RS

Active

Omron Electronics Inc-EMC Div

SWITCH ROTARY DIP HEX 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

A6K-162RS

Active

Omron Electronics Inc-EMC Div

SWITCH ROTARY DIP HEX 0.025A 24V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	63	$ 5.74

Description

General part information

A6K Series

Dip Switch Hexadecimal 16 Position Through Hole Rotary with Shaft Actuator 25mA 24VDC

Documents

Technical documentation and resources

How to Read Date Codes

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A6K-162RS	A6K Series

Actuator Level	Raised	Flush, Recessed, Raised
Actuator Type	Rotary with Shaft	Rotary for Tool, Rotary with Shaft
Circuit	Hexadecimal	BCD, Hexadecimal
Contact Finish	Gold	Gold
Current Rating (Amps)	25 mA	25 mA
Electrical Life	20000 Steps	20000 Steps
Height Above Board	6 mm	3 - 6 mm
Height Above Board	0.236 in	0.118 - 0.236 in
Length [x]	7.2 mm	7.2 mm
Length [x]	0.283 "	0.283 "
Mounting Type	Through Hole	Through Hole
Number of Positions	16	16
Number of Positions	-	10
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-30 ░C	-30 ░C
Pitch	Full	Full
Pitch [x]	0.1 in	0.05 - 0.1 in
Pitch [x]	2.54 mm	1.27 - 2.54 mm
Termination Style	PC Pin	PC Pin
Voltage Rating	24 VDC	24 VDC
Washable	False	False

A6K Series

SWITCH ROTARY DIP BCD 0.025A 24V

Part	Termination Style	Actuator Type	Circuit	Length [x]	Length [x]	Electrical Life	Number of Positions	Height Above Board	Height Above Board	Contact Finish	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Level	Pitch [x]	Pitch	Pitch [x]	Voltage Rating	Current Rating (Amps)	Number of Positions
Omron Electronics Inc-EMC Div A6K-102RF	PC Pin	Rotary for Tool	BCD	7.2 mm	0.283 "	20000 Steps	10	0.118 in	3 mm	Gold	Through Hole	-30 ░C	80 C	Flush, Recessed	0.1 in	Full	2.54 mm	24 VDC	25 mA
Omron Electronics Inc-EMC Div A6K-162RF	PC Pin	Rotary for Tool	Hexadecimal	7.2 mm	0.283 "	20000 Steps		0.118 in	3 mm	Gold	Through Hole	-30 ░C	80 C	Flush, Recessed	0.1 in	Full	2.54 mm	24 VDC	25 mA	16
Omron Electronics Inc-EMC Div A6K-162RS	PC Pin	Rotary with Shaft	Hexadecimal	7.2 mm	0.283 "	20000 Steps		0.236 in	6 mm	Gold	Through Hole	-30 ░C	80 C	Raised	0.1 in	Full	2.54 mm	24 VDC	25 mA	16
Omron Electronics Inc-EMC Div A6K-164RS	PC Pin	Rotary with Shaft	Hexadecimal	7.2 mm	0.283 "	20000 Steps		0.236 in	6 mm	Gold	Through Hole	-30 ░C	80 C	Raised	0.05 in		1.27 mm	24 VDC	25 mA	16
Omron Electronics Inc-EMC Div A6K-164RF	PC Pin	Rotary for Tool	Hexadecimal	7.2 mm	0.283 "	20000 Steps		0.118 in	3 mm	Gold	Through Hole	-30 ░C	80 C	Flush, Recessed	0.05 in		1.27 mm	24 VDC	25 mA	16
Omron Electronics Inc-EMC Div A6K-104RF	PC Pin	Rotary for Tool	BCD	7.2 mm	0.283 "	20000 Steps	10	0.118 in	3 mm	Gold	Through Hole	-30 ░C	80 C	Flush, Recessed	0.05 in		1.27 mm	24 VDC	25 mA
Omron Electronics Inc-EMC Div A6K-104RS	PC Pin	Rotary with Shaft	BCD	7.2 mm	0.283 "	20000 Steps	10	0.236 in	6 mm	Gold	Through Hole	-30 ░C	80 C	Raised	0.05 in		1.27 mm	24 VDC	25 mA
