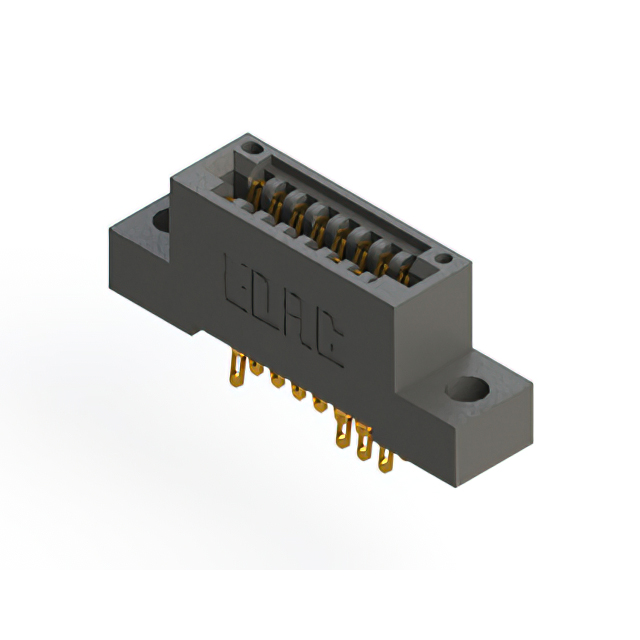

395-016-555-204
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-016-555-204
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-016-555-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 16 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
395-016 Series
...
| Part | Read Out | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish | Contact Type | Contact Material | Number of Positions | Termination Rows | Number of Rows | Termination | Gender | Pitch [x] | Pitch [x] | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Color | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Features | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | 8 | 8 | 8 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold | Cantilever | Copper Alloy | 16 | 2 | 2 | Solder | Female | 2.54 mm | 0.1 in | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Black | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Through Hole | ||||
EDAC Inc. | Dual | 8 | 8 | 8 | Gold | Cantilever | Copper Alloy | 16 | 2 | 2 | Solder | Female | 2.54 mm | 0.1 in | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Black | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Through Hole Right Angle | |||||||
EDAC Inc. | Dual | 8 | 8 | 8 | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Cantilever | Copper Alloy | 16 | 2 | 2 | Solder | Female | 2.54 mm | 0.1 in | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Black | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Through Hole Right Angle | Card Guides | |||||
EDAC Inc. | Dual | 8 | 8 | 8 | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold | Cantilever | Copper Alloy | 16 | 2 | 2 | Solder Eyelet(s) | Female | 2.54 mm | 0.1 in | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Black | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Board Edge Straddle Mount | Card Extender | |||
EDAC Inc. | Single | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Gold | Cantilever | Copper Alloy | 16 | 1 | 1 | Wire Wrap | Female | 2.54 mm | 0.1 in | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Black | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Through Hole | 16 | ||||||
EDAC Inc. | Dual | 8 | 8 | 8 | Side Mount Opening Unthreaded | Gold | Cantilever | Copper Alloy | 16 | 2 | 2 | Wire Wrap | Female | 2.54 mm | 0.1 in | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Black | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Through Hole | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Dual | 8 | 8 | 8 | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Gold | Cantilever | Copper Alloy | 16 | 2 | 2 | Solder | Female | 2.54 mm | 0.1 in | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Black | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Through Hole | ||||
EDAC Inc. | Single | M3 Threaded Insert Top Mount Opening | Gold | Cantilever | Copper Alloy | 16 | 1 | 1 | Solder | Female | 2.54 mm | 0.1 in | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Black | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Through Hole Right Angle | 16 | ||||||||
EDAC Inc. | Single | Gold | Cantilever | Copper Alloy | 16 | 1 | 1 | Solder | Female | 2.54 mm | 0.1 in | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Black | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Through Hole Right Angle | 16 | |||||||||
EDAC Inc. | Single | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Cantilever | Copper Alloy | 16 | 1 | 1 | Solder | Female | 2.54 mm | 0.1 in | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Black | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Through Hole | Card Guides | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
395-016 Series
16 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
