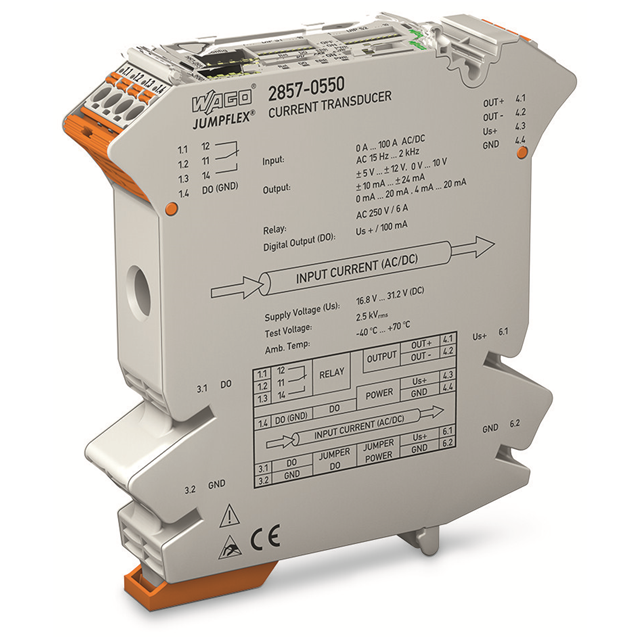

Specification	2857-550

Input Current Range (Maximum)	100 A
Input Current Range (Minimum)	-100 A
Input Frequency (Additional) Maximum	1 kHz
Input Frequency (Additional) Minimum	15 kHz
Input Range Types	Current, Voltage
Input Type	Current
Isolation	3000 V
Mounting Type	DIN Rail
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Output Current Range (Max)	20 mA
Output Current Range (Min)	-20 mA
Output Type	Current, Voltage
Output Voltage Range (Max)	10 VDC
Output Voltage Range (Min)	-10 V
Termination Style	Spring Terminal
Type	Signal Conditioner
Voltage - Supply	24 VDC
