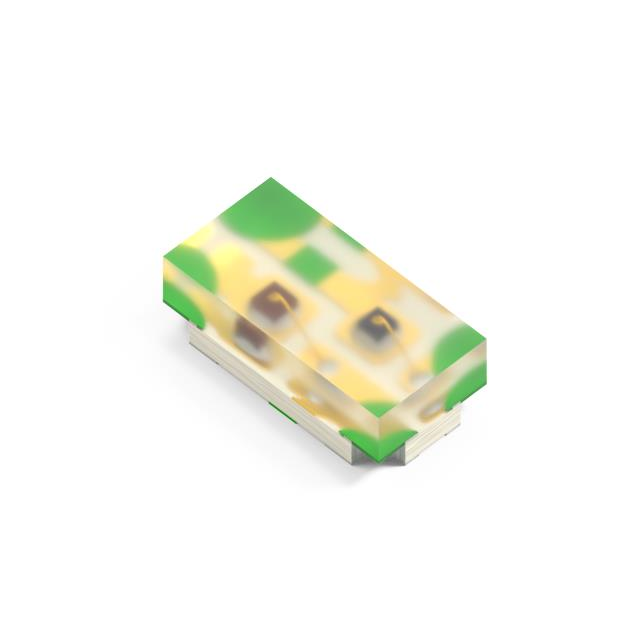

XZVGMYK53W-9
ActiveSunLED
LED GRN/YLW CLEAR 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZVGMYK53W-9
ActiveSunLED
LED GRN/YLW CLEAR 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZVGMYK53W-9 |
|---|---|
| Color | Green, Yellow |
| Configuration | Independent |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 0.65 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.6 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 148 mcd, 49 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V, 2 V |
| Wavelength - Dominant | 570 nm, 590 nm |
| Wavelength - Peak | 590 nm, 574 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.47 | |
| 10 | $ 0.31 | |||
| 100 | $ 0.21 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.47 | ||
| 10 | $ 0.31 | |||
| 100 | $ 0.21 | |||
| 500 | $ 0.14 | |||
| 1000 | $ 0.12 | |||
| Tape & Reel (TR) | 2000 | $ 0.11 | ||
| 6000 | $ 0.10 | |||
| 10000 | $ 0.09 | |||
| 50000 | $ 0.08 | |||
| 100000 | $ 0.08 | |||
Description
General part information
XZVGMYK53 Series
Green, Yellow 570nm Green, 590nm Yellow LED Indication - Discrete 2.1V Green, 2V Yellow 0603 (1608 Metric)
