KMF1.1141.11

Active

SCHURTER Inc.

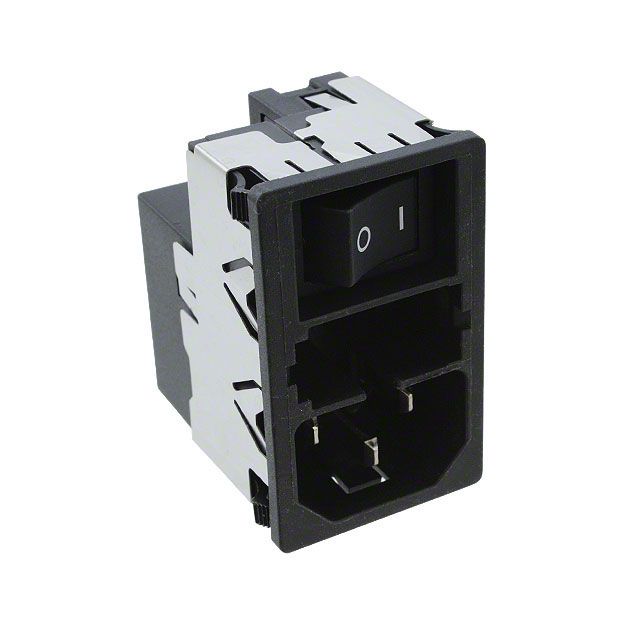

POWER ENTRY MODULE FILTERED M 3 POS 250VAC 4A FUSE/SWITCH ST 1 PORT

Search across all available documentation for this part.

Active

SCHURTER Inc.

POWER ENTRY MODULE FILTERED M 3 POS 250VAC 4A FUSE/SWITCH ST 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	KMF1.1141.11

Accomodates a Fuse	True
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	4 A
Features	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	28.8 mm
Panel Cutout Dimensions [y]	47.8 mm
Panel Thickness [Max]	2.5 mm
Panel Thickness [Max]	0.098 in
Panel Thickness [Min]	1 mm
Panel Thickness [Min]	0.039 in
Switch Features	Switch On-Off
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

POWER ENTRY MODULE FILTERED M 3 POS 250VAC 4A FUSE/SWITCH ST 1 PORT

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination	Termination	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Accomodates a Fuse	Filter Type	Switch Features	Material Flammability Rating	Connector Type	Approval Agency	Voltage Rating - Appliance Inlet	Ingress Protection	Current Rating - Filter	Mounting Type	Current Rating - Appliance Inlet	Fuse Holder, Drawer	Connector Style	Features
SCHURTER Inc. KMF1.1141.11	47.8 mm	28.8 mm	0.189 ", 4.8 mm	Quick Connect	2.5 mm	1 mm	0.098 in	0.039 in		Filtered (EMI, RFI) - Commercial	Switch On-Off	UL94 V-0	Receptacle, Male Blades - Module	CCC, cULus, ENEC	250 VAC	IP40	4 A	Panel Mount, Snap-In	10 A	Drawer Sold Separate	IEC 320-C14	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.32

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
