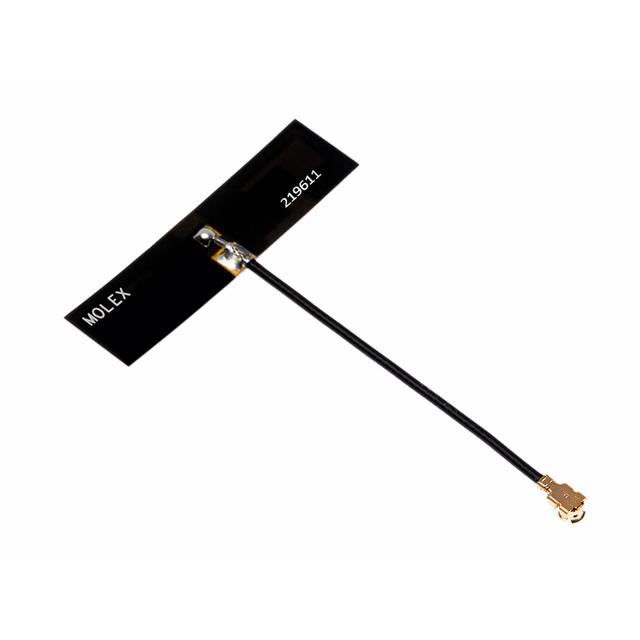

2196110050
RF ANTENNA Bluetooth, Zigbee™ Flat Patch MHF1 Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | 2196110050 |
|---|---|
| Antenna Type | Flat Patch |
| Applications | Zigbee™, Bluetooth |
| Features | Cable, 50mm |
| Frequency (Center/Band) | 2.45GHz, 6.525GHz, 5.5GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 2.5 GHz |
| Frequency Range (Band 1) Minimum | 2.4 GHz |
| Frequency Range (Band 2) Maximum | 5.85 GHz |
| Frequency Range (Band 2) Minimum | 5.15 GHz |
| Frequency Range (Band 3) Maximum | 7.125 GHz |
| Frequency Range (Band 3) Minimum | 5.925 GHz |
| Gain | 3.67 dBi, 4.12 dBi, 2.67 dBi |
| Height (Max) | 0.079 in |
| Mounting Type | Adhesive |
| Number of Bands | 3 |
| Power - Max | 2 VA |
| Return Loss | -10 dB |
| RF Family/Standard | 802.15.4, Bluetooth |
| Termination | MHF1 |
