SFTW202 GYS 1/4"

Active

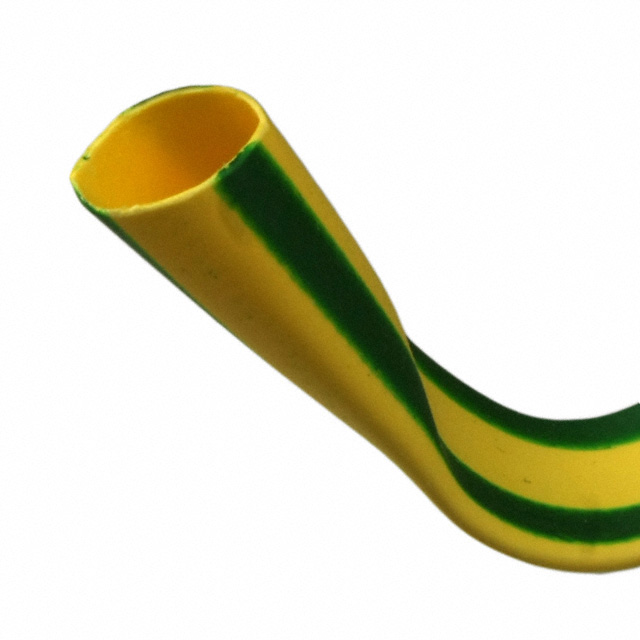

HEATSHRINK SFTW202 1/4" GRN/YEL

Search across all available documentation for this part.

Active

HEATSHRINK SFTW202 1/4" GRN/YEL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SFTW202 GYS 1/4"	SFTW202 Series

Color	Green, Yellow	Green, Yellow
Features	Self Extinguishing	Self Extinguishing
Inner Diameter - Recovered	-	5.99 mm
Inner Diameter - Recovered	-	0.236 in
Inner Diameter - Recovered [diameter]	0.118 in	0.118 - 0.178 in
Inner Diameter - Recovered [diameter]	2.99 mm	2.99 - 4.52 mm
Inner Diameter - Supplied [diameter]	0.25 in	0.25 - 0.5 in
Inner Diameter - Supplied [diameter]	6.35 mm	6.35 - 12.7 mm
Length	7.6 m, 1.52 m	1.52 - 15.2 m
Length	25 ft, 5 '	5 - 50 ft
Length [x]	61 m	61 m
Length [x]	200 ft	200 ft
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	0.66 mm	0.66 - 0.76 mm
Recovered Wall Thickness	0.026 "	0.026 "
Recovered Wall Thickness	-	0.03 "
Shelf Life	120 Months	120 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Shrink Temperature	100 °C	100 °C
Shrinkage Ratio	2 to 1	2 to 1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	10 °C	10 °C
Type	Tubing, Flexible	Tubing, Flexible

HEATSHRINK SFTW202 1/4" GRN/YEL

Part	Color	Length	Length	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrinkage Ratio	Type	Material	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Features	Length [x]	Length [x]	Shelf Life	Shelf Life Start	Operating Temperature [Max]	Operating Temperature [Min]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Shrink Temperature	Recovered Wall Thickness	Inner Diameter - Recovered	Inner Diameter - Recovered
3M SFTW202 GYS 1/4"	Green, Yellow	1.52 m, 7.6 m	5 ', 25 ft	0.66 mm	0.026 "	0.118 in	2.99 mm	2 to 1	Tubing, Flexible	Polyolefin (PO)	0.25 in	6.35 mm	Self Extinguishing	61 m	200 ft	120 Months	Date of Manufacture	135 °C	-55 °C	27 °C, 80 °F	10 °C	100 °C
3M SFTW202 GYS 3/8"	Green, Yellow	7.6 m, 15.2 m	25 ft, 50 ft	0.76 mm		0.178 in	4.52 mm	2 to 1	Tubing, Flexible	Polyolefin (PO)	0.375 in	9.53 mm	Self Extinguishing	61 m	200 ft	120 Months	Date of Manufacture	135 °C	-55 °C	27 °C, 80 °F	10 °C	100 °C	0.03 "
3M SFTW202 GYS 1/2"	Green, Yellow	1.52 m	5 '	0.76 mm				2 to 1	Tubing, Flexible	Polyolefin (PO)	0.5 in	12.7 mm	Self Extinguishing			120 Months	Date of Manufacture	135 °C	-55 °C	27 °C, 80 °F	10 °C	100 °C	0.03 "	5.99 mm	0.236 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Shrink Tubing, Flexible 0.250" (6.35mm) 2 to 1 Green, Yellow 200.0' (61.0m)
