PTS181216V125
ActiveEaton - Electronics Division

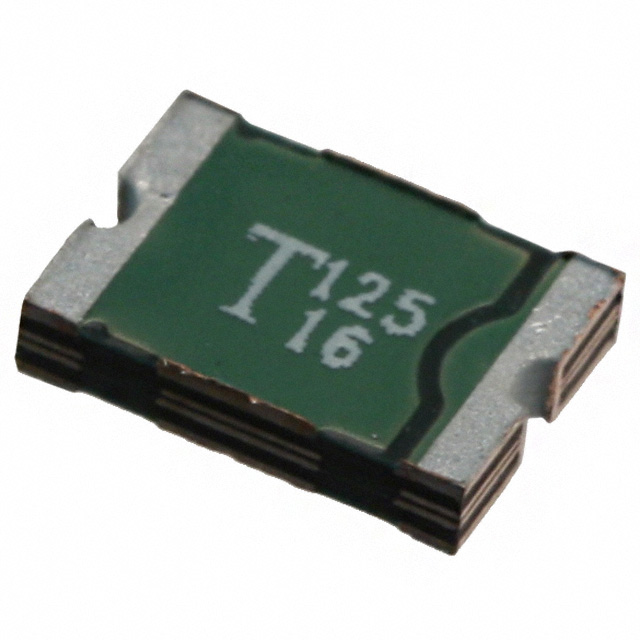

PPTC RESETTABLE FUSE, 1.25A, 16VDC, SMD
PTS181216V125
ActiveEaton - Electronics Division
PPTC RESETTABLE FUSE, 1.25A, 16VDC, SMD
Description
General part information
PTS181216V125
Polymeric PTC Resettable Fuse 16V 1.25 A Ih Surface Mount 1812 (4532 Metric), Concave
Technical Specifications
Parameters and characteristics for this part
| Specification | PTS181216V125 |
|---|---|
| Approval Agency | cURus, TUV |
| Current - Hold (Ih) (Max) | 1.25 A |
| Current - Max | 100 A |
| Current - Trip (It) | 2.5 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Concave, 1812 (4532 Metric) |
| Package Features | Concave |
| Package Name | 1812 |
| Resistance - Initial (Ri) (Min) | 50 mOhms |
| Resistance - Post Trip (R1) (Max) | 140 mOhms |
| Size / Dimension Length | 0.179 in |
| Size / Dimension Width | 0.128 in |
| Thickness (Max) | 0.035 in |
| Time to Trip | 400 ms |
| Type | Polymeric |
| Voltage - Max | 16 V |
