Description
General part information

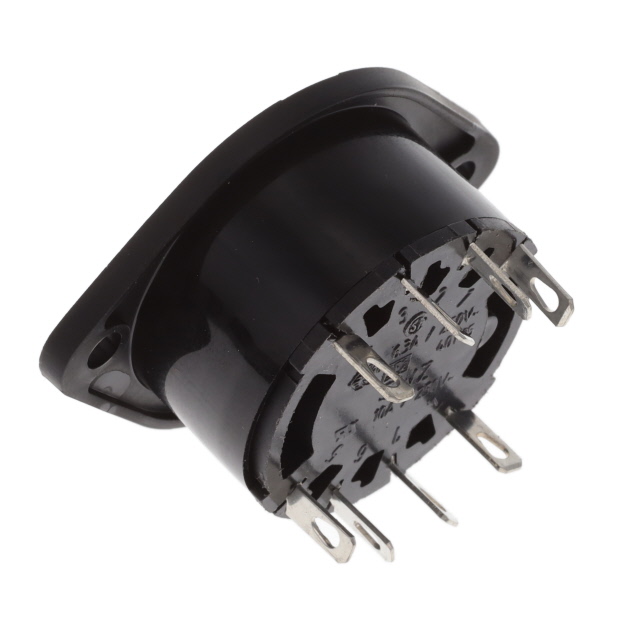

0033.3510
Selector Switch 6 Position Series, Parallel Connections 10A (AC) 250 V Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 0033.3510 |
|---|---|
| Approval Agency | UR, CSA, VDE |
| Circuit | Parallel Connections, Series |
| Current Rating | 10 A |
| Depth Behind Flange | 21.5 mm |
| Features | Marking: 127-200-115-240-100-220 |
| Features - Marking | 115, 100, 127, 220, 200, 240 |
| Illumination | Non-Illuminated |
| Ingress Protection | IP40 |
| Mechanical Life (Cycles) | 300 Cycles |
| Mounting Type | Panel Mount |
| Number of Positions | 6 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Panel Cutout Diameter | 30 mm |
| Panel Cutout Shape | Circular |
| Quick Connect Size (0.110") | 0.11 in |
| Switch Function | On-On-On-On-On-On |
| Termination Style | Quick Connect, Solder |
| Type | Line Voltage Selector |
| Voltage Rating - AC | 250 V |
