2202-1206
ActiveWAGO Corporation

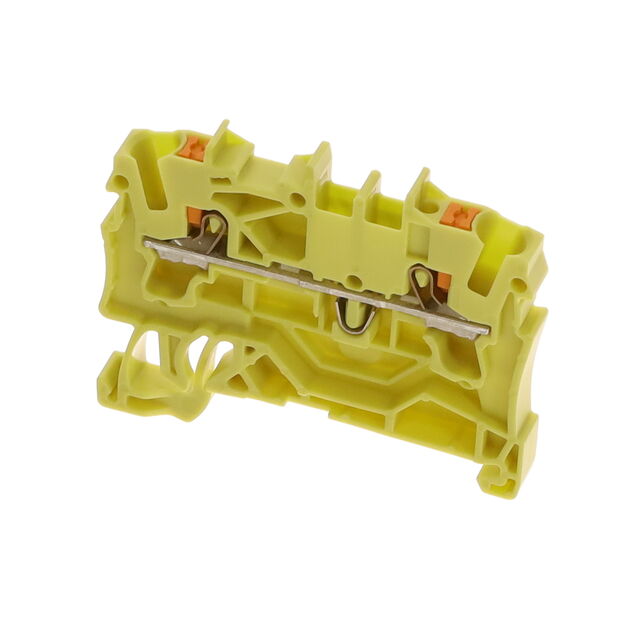

2-CONDUCTOR THROUGH TERMINAL BLOCK, WITH PUSH-BUTTON 2.5 MM , YELLOW
2202-1206
ActiveWAGO Corporation
2-CONDUCTOR THROUGH TERMINAL BLOCK, WITH PUSH-BUTTON 2.5 MM , YELLOW
Description
General part information
2202-1206
Terminal Block Connector 2 Position Feed Through Yellow 12-22 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 2202-1206 |
|---|---|
| Color | Yellow |
| Current - IEC | 24 A |
| Current - UL | 20 A |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length (Max) | 12 mm |
| Stripping Length (Min) | 10 mm |
| Terminal Width | 5.2 mm |
| Termination Style | Push In |
| Type | Feed Through |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG (Max) | 22 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 4 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.25 mm² |
