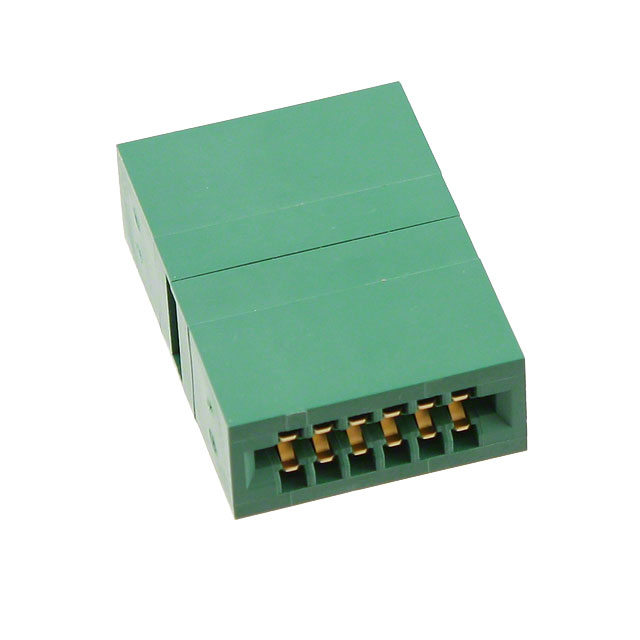

AAC06FSLN

Active

Sullins Connector Solutions

CONN EDGE ADAPT CARD-CARD 12POS

Search across all available documentation for this part.

Active

Sullins Connector Solutions

CONN EDGE ADAPT CARD-CARD 12POS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	10	$ 18.91

General part information

12 Position Edge Adapter Connector Card Slot to Card Slot Free Hanging (In-Line)

Technical documentation and resources

No documents available

Part	Number of Positions	Current Rating (Per Contact)	Mounting Type	Card Thickness	Card Thickness	Adapter Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]
Sullins Connector Solutions AAC06FSLN	12	3 A	Free Hanging (In-Line)	0.062 in	1.57 mm	Card Slot to Card Slot	0.76 Ám	30 Áin	Gold	Beryllium Copper	-65 ░C	150 °C
Sullins Connector Solutions AAC06FSLD	12	3 A		0.062 in	1.57 mm	Card Slot to Card Slot	0.76 Ám	30 Áin	Gold	Beryllium Copper	-65 ░C	150 °C	0.125 in	Top Opening, Unthreaded	3.18 mm
