AS4/3/G

Active

Altech Corporation

SPRING CLAMP1 IN 2OUT 35A600V22-

Search across all available documentation for this part.

Active

Altech Corporation

SPRING CLAMP1 IN 2OUT 35A600V22-

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

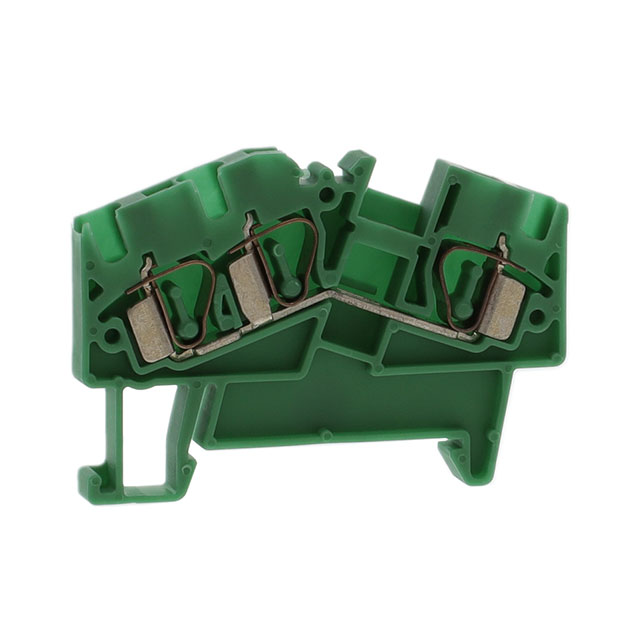

Terminal Block Connector 3 Position Feed Through Green 10-22 AWG

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	AS4/3/G	AS4 Series

Color	Green	Red, Gray, White, Black, Blue, Green
Current - IEC	32 A	32 A
Current - UL	35 A	35 A
Material - Insulation	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Number of Levels	1	1
Number of Positions	-	4
Stripping Length	15 mm	15 mm
Terminal - Width [y]	6 mm	6 mm
Termination Style	Push In, Spring	Push In, Spring
Type	Feed Through	Feed Through
Voltage - IEC	800 V	800 V
Voltage - UL	600 V	600 V
Wire Gauge or Range - AWG [Max]	22 AWG	22 AWG
Wire Gauge or Range - AWG [Min]	10 AWG	10 AWG
Wire Gauge or Range - mm˛ [Max]	4 mm˛	4 mm˛
Wire Gauge or Range - mm˛ [Min]	0.2 mm˛	0.2 mm˛
Wire Gauge or Range - mm²	-	0.2 mm²
Wire Gauge or Range - mm²	-	4 mm²

SPRING CLAMP1 IN 2OUT 35A600V22-

Part	Current - IEC	Color	Material - Insulation	Voltage - IEC	Voltage - UL	Termination Style	Current - UL	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Stripping Length	Type	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Terminal - Width [y]	Number of Levels	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Positions
Altech Corporation AS4/3/R	32 A	Red	Polyamide (PA66), Nylon 6/6	800 V	600 V	Push In, Spring	35 A	22 AWG	10 AWG	15 mm	Feed Through	0.2 mm˛	4 mm˛	6 mm	1
Altech Corporation AS4/3	32 A	Gray	Polyamide (PA66), Nylon 6/6	800 V	600 V	Push In, Spring	35 A	22 AWG	10 AWG	15 mm	Feed Through			6 mm	1	0.2 mm²	4 mm²
Altech Corporation AS4/3/W	32 A	White	Polyamide (PA66), Nylon 6/6	800 V	600 V	Push In, Spring	35 A	22 AWG	10 AWG	15 mm	Feed Through			6 mm	1	0.2 mm²	4 mm²
Altech Corporation AS4/3/BL	32 A	Black	Polyamide (PA66), Nylon 6/6	800 V	600 V	Push In, Spring	35 A	22 AWG	10 AWG	15 mm	Feed Through			6 mm	1	0.2 mm²	4 mm²
Altech Corporation AS4/4	32 A	Gray	Polyamide (PA66), Nylon 6/6	800 V	600 V	Push In, Spring	35 A	22 AWG	10 AWG	15 mm	Feed Through			6 mm	1	0.2 mm²	4 mm²	4
Altech Corporation AS4/3/BU	32 A	Blue	Polyamide (PA66), Nylon 6/6	800 V	600 V	Push In, Spring	35 A	22 AWG	10 AWG	15 mm	Feed Through			6 mm	1	0.2 mm²	4 mm²
Altech Corporation AS4/3/G	32 A	Green	Polyamide (PA66), Nylon 6/6	800 V	600 V	Push In, Spring	35 A	22 AWG	10 AWG	15 mm	Feed Through	0.2 mm˛	4 mm˛	6 mm	1
