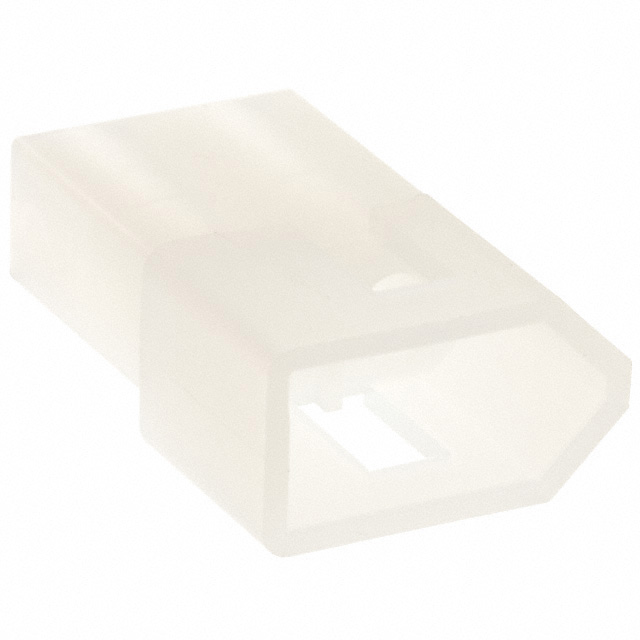

0003092022
ActiveMolex
CONN PLUG HSG 2POS 6.30MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0003092022
ActiveMolex
CONN PLUG HSG 2POS 6.30MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 0003092022 | 000309 Series |
|---|---|---|
| Color | Natural | Natural, Black |
| Connector Type | Plug | Plug, Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male or Female | Male or Female, Female Socket |
| Fastening Type | Detent Lock | Detent Lock, Locking Ramp, Latch Lock, Latch Lock/Eject Hooks, Latch Holder |
| Insulation Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Panel Mount, Snap-In |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 2 | 1 - 15 |
| Number of Rows | 1 | 1 - 3 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -55 - -40 °C |
| Pitch [x] | 6.3 mm | 5.03 - 6.3 mm |
| Pitch [x] | 0.248 in | 0.198 - 0.248 in |
| Row Spacing | - | 0.198 in |
| Row Spacing | - | 5.03 mm |
000309 Series
CONN PLUG HSG 2POS 6.30MM
| Part | Mounting Type | Pitch [x] | Pitch [x] | Note | Connector Type | Color | Contact Termination | Number of Rows | Insulation Material | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Number of Positions | Row Spacing | Row Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex 0003092022 | Free Hanging (In-Line) | 6.3 mm | 0.248 in | Contacts Not Included | Plug | Natural | Crimp | 1 | Polyamide (PA66), Nylon 6/6 | Male or Female | -40 °C | 105 ░C | Detent Lock | 2 | ||
Molex 0003092091 | Panel Mount, Snap-In | 5.03 mm | 0.198 in | Contacts Not Included | Plug | Natural | Crimp | 3 | Male or Female | Detent Lock | 9 | 0.198 in | 5.03 mm | |||
Molex 0003091121 | Panel Mount, Snap-In | 5.03 mm | 0.198 in | Contacts Not Included | Receptacle | Natural | Crimp | 3 | Polyamide (PA66), Nylon 6/6 | Male or Female | -40 °C | 105 ░C | 12 | 0.198 in | 5.03 mm | |
Molex 0003091049 | Free Hanging (In-Line) | 5.03 mm | 0.198 in | Contacts Not Included | Receptacle | Natural | Crimp | 2 | Polyamide (PA66), Nylon 6/6 | Male or Female | -40 °C | 105 ░C | Locking Ramp | 4 | 0.198 in | 5.03 mm |
Molex 0003091064 | Free Hanging (In-Line) | 5.03 mm | 0.198 in | Contacts Not Included | Receptacle | Natural | Crimp | 3 | Polyamide (PA66), Nylon 6/6 | Male or Female | -40 °C | 105 ░C | Locking Ramp | 6 | 0.198 in | 5.03 mm |
Molex 0003091163 | Free Hanging (In-Line) | 6.3 mm | 0.248 in | Contacts Not Included | Receptacle | Natural | Crimp | 1 | Male or Female | Detent Lock | 2 | |||||
Molex 0003092014 | Free Hanging (In-Line) | Contacts Not Included | Plug | Natural | Crimp | 1 | Male or Female | 1 | ||||||||
Molex 0003091126 | Free Hanging (In-Line) | 5.03 mm | 0.198 in | Contacts Not Included | Receptacle | Natural | Crimp | 3 | Polyamide (PA66), Nylon 6/6 | Male or Female | -40 °C | 105 ░C | Locking Ramp | 12 | 0.198 in | 5.03 mm |
Molex 0003092048 | Free Hanging (In-Line) | 6.3 mm | 0.248 in | Contacts Not Included | Plug | Natural | Crimp | 1 | Male or Female | Latch Lock | 4 | |||||
Molex 0003092028 | Free Hanging (In-Line) | 6.3 mm | 0.248 in | Contacts Not Included | Plug | Natural | Crimp | 1 | Male or Female | Latch Lock | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.28 | |
| 10 | $ 0.22 | |||
| 100 | $ 0.16 | |||
| 1000 | $ 0.12 | |||
| 2500 | $ 0.11 | |||
Description
General part information
000309 Series
2 Rectangular Connectors - Housings Plug Natural 0.248" (6.30mm)
